Circuit Inspection

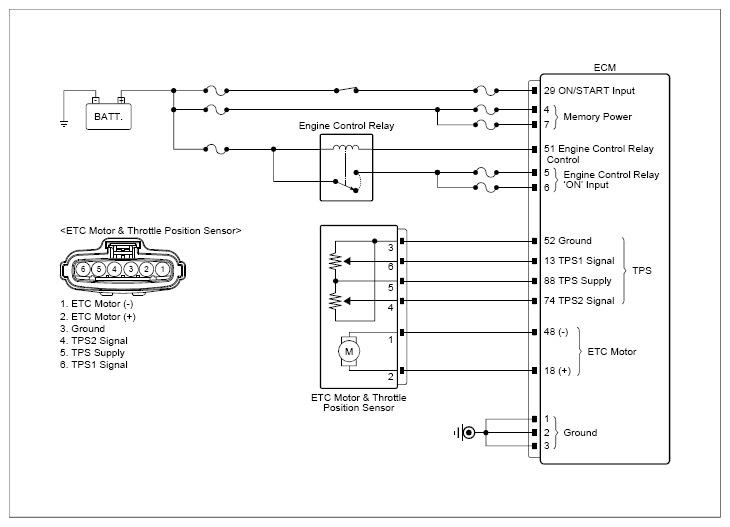

G13302315Courtesy of KIA MOTORS AMERICA, INC.

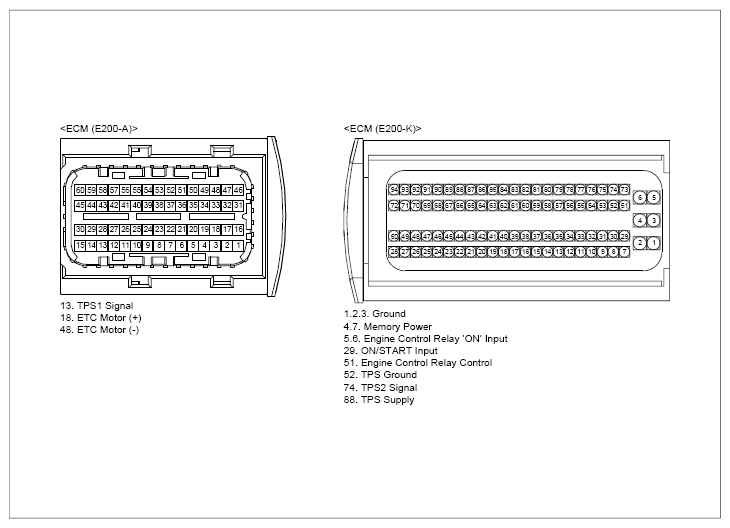

G13302316Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 ETC motor & TPS connector 5 (TPS supply) Chassis ground - Approx. 4.9V
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 ETC motor & TPS connector 6 (TPS1 signal) Chassis ground   Approx. 4.9V
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 ETC motor & TPS connector 6 (TPS1 signal) Chassis ground - ∞ (infinity)Ω
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 ETC motor & TPS connector 3 (ground) Chassis ground - Approx. below 1Ω

Good

No Good
