Repair Procedures: Removal

  1. Disconnect the battery negative (-) cable.
  2. Remove the Integrated central control unit (ICU).

    (Refer to Body Electrical System - "INTEGRATED CENTRAL CONTROL UNIT (ICU) ")

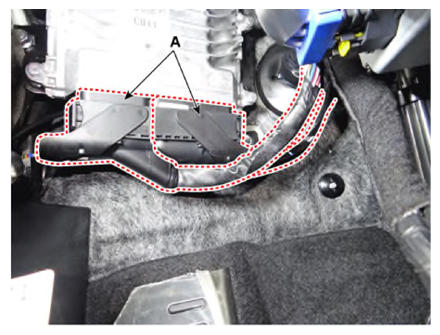

  3. Disconnect the TCM connectors (A).
    G13304109Courtesy of KIA MOTORS AMERICA, INC.

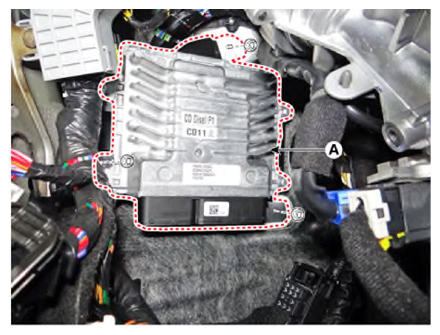

  4. Remove the TCM (A) after loosening the nuts.
    G13304110Courtesy of KIA MOTORS AMERICA, INC.
