Component Inspection

Inspection Condition	Inspection Procedure	Reference

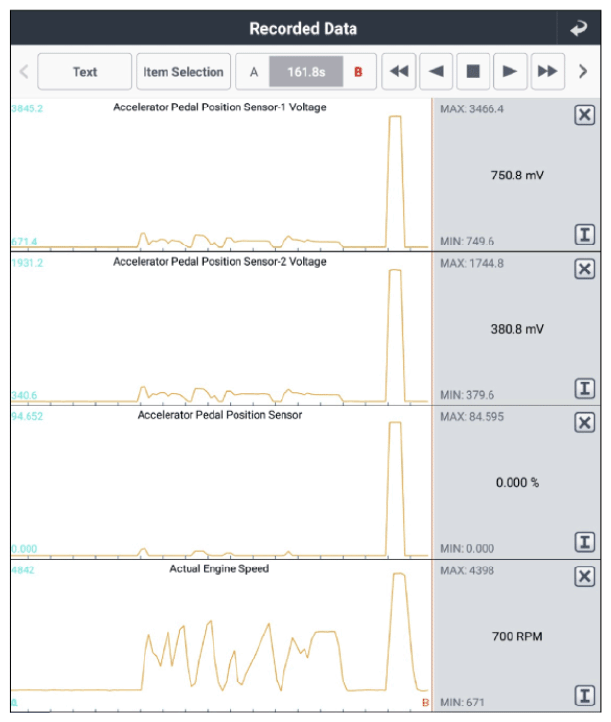

Engine "ON".	Connect KDS to Data Link Connector (DLC). Monitor parameters in "Current Data" with KDS.	Fig.1

Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the accelerator pedal sensor and go to "VERIFICATION OF REPAIR " procedure.
