Repair Procedures: Installation

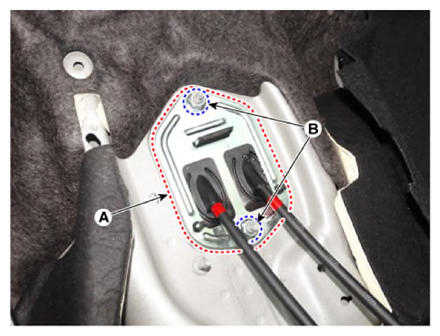

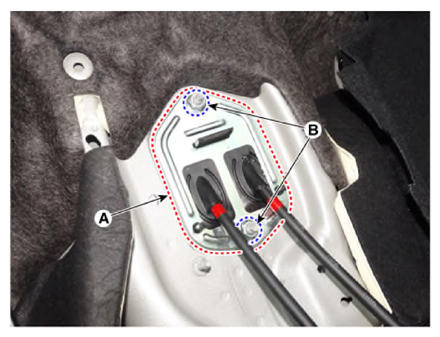

- Install the shift cable retainer (A) by tightening nuts (B).
Tightening torque:
11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb.ft)
- Install the select cable.

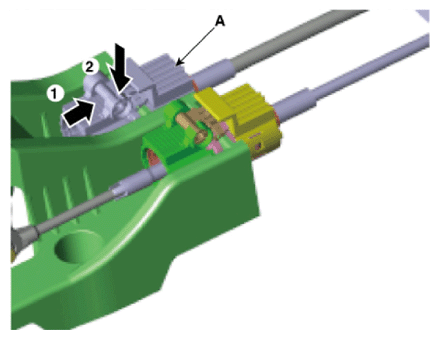

- Install the select cable (A) from the shift lever.

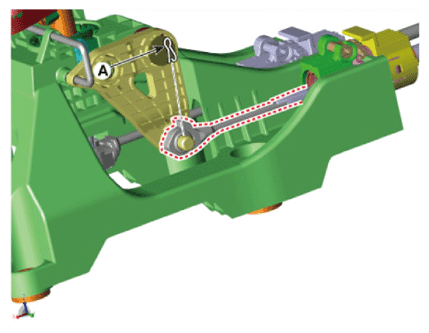

- Install the select cable to the lever pin and then insert the snap pin (A).

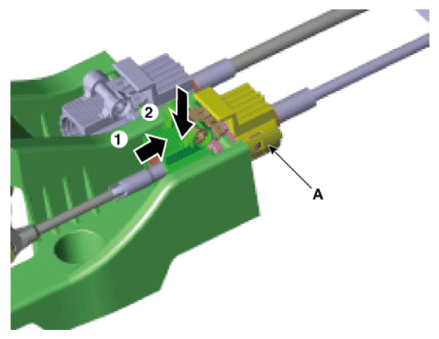

- Install the select cable (A) from the shift lever.
- Install the shift cable.

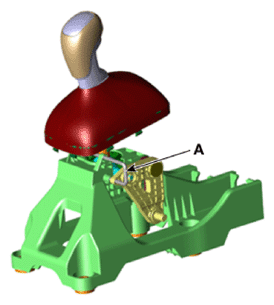

- Check that the shift lever and control shaft are placed in the "4th" position and then install the 4th fixing pin (A).
- Install the control cable.

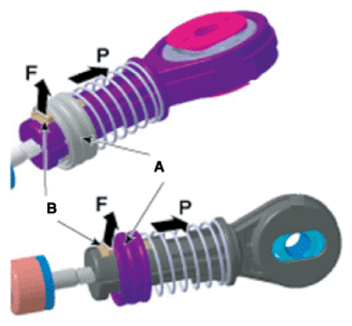

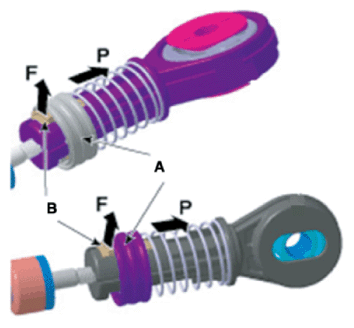

- After pulling the holder (A) in the direction of the "P", pull the lock (B) in the direction of the "F".

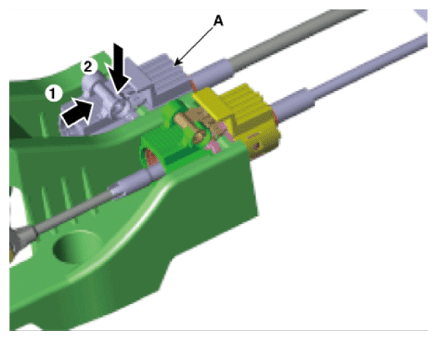

- Push the lock (A) after installing the control cable to the control shaft and cable bracket.

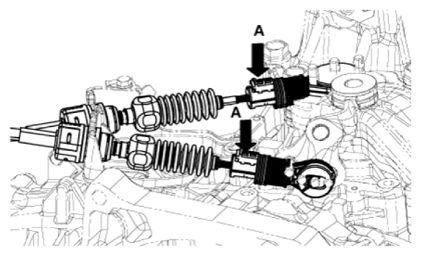

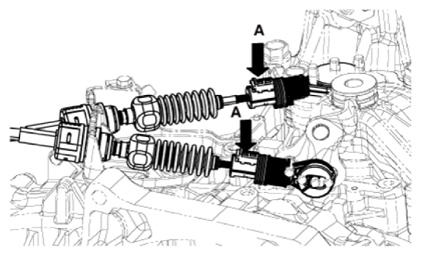

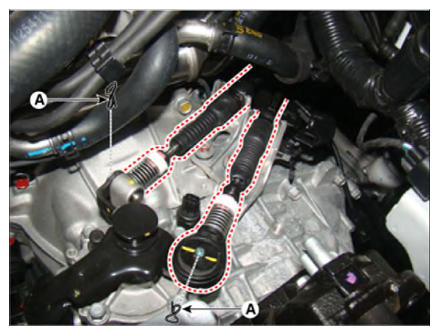

- Insert the snap pins (A).
- After pulling the holder (A) in the direction of the "P", pull the lock (B) in the direction of the "F".
- Remove the 4th fixing pin (A).
- Check for proper operation of control shaft lever when operated (1st, 2nd, 3rd, 4th, 5th, 6th, R gear).
- Install the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")
- Install the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
- Install the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
