Repair Procedures: Removal

  1. Move the shift lever to 4th gear.
  2. Remove the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

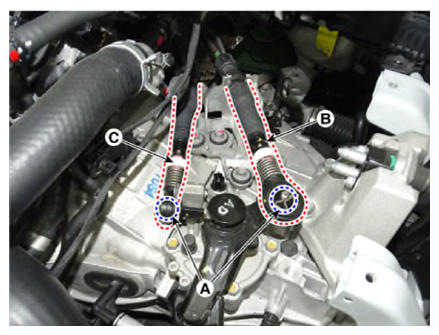

  4. Remove the control cable from the control shaft after removing the snap pins (A).
  5. Remove the shift cable (B) and select cable (C).
    G13304037Courtesy of KIA MOTORS AMERICA, INC.

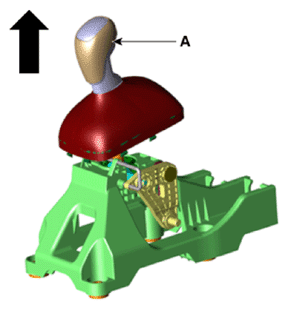

  6. Remove the knob (A) by pulling it in the direction of upward after removing the boots from the console upper cover.
    G13304038Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  8. Remove the select cable.

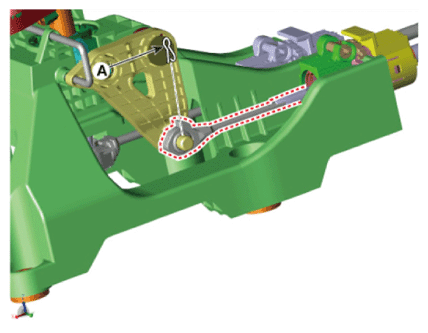

    1. Remove the snap pin (A).
      G13304039Courtesy of KIA MOTORS AMERICA, INC.

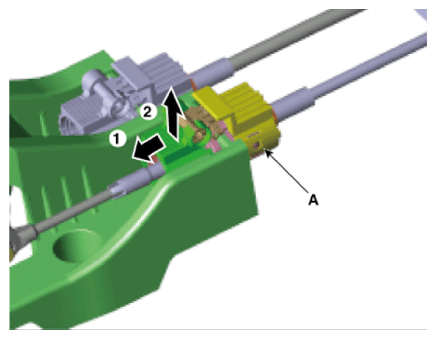

    2. Remove the select cable (A) from the shift lever.
    G13304040Courtesy of KIA MOTORS AMERICA, INC.
  9. Remove the shift cable.

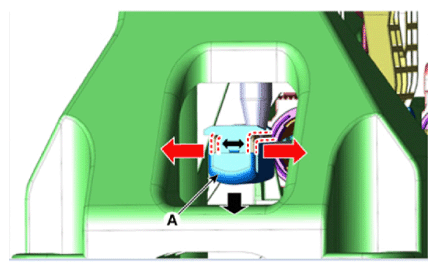

    1. Remove the snap pin (A) in the direction of the arrow.
      G13304041Courtesy of KIA MOTORS AMERICA, INC.

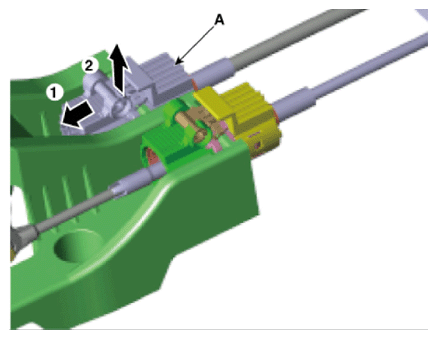

    2. Remove the shift cable (A) from the shift lever.
    G13304042Courtesy of KIA MOTORS AMERICA, INC.

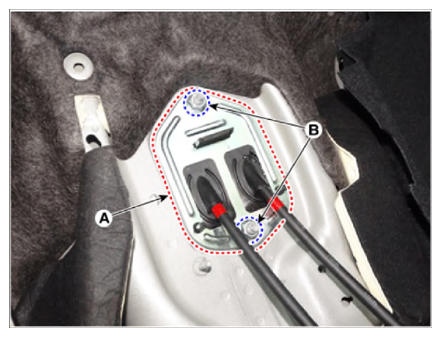

  10. Remove the shift cable retainer (A) after loosening the nuts (B). Then, remove the shift cable by pulling it toward the vehicle interior.
    G13304043Courtesy of KIA MOTORS AMERICA, INC.
