Repair Procedures: Disassembly

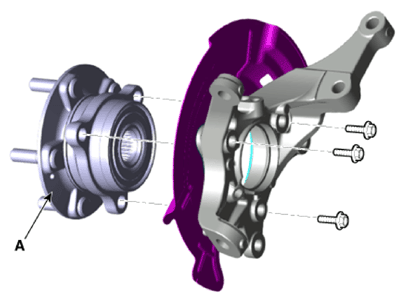

- Remove the hub bearing (A) from the knuckle.
Tightening torque:
98.0 - 117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb.ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|

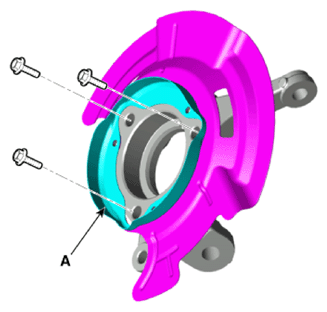

- Remove the dust cover (A) from the knuckle.
Tightening torque:
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Assemble in the reverse order of disassembly.
