Connector and Terminal Function

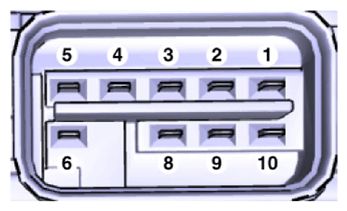

G13834188Courtesy of KIA MOTORS AMERICA, INC.
Pin Function Pin Function
1 Fuel sender (-) 6 Fuel sender (+)
2 Fuel pressure sensor signal 7 -
3 Fuel pressure sensor ground 8 Fuel pressure sensor (+)
4 Ground 9 CAN_H IGH
5 CAN_LOW 10 Battery (+)
