Vehicle S/W Management

Inspection Condition Inspection Procedure Reference

  1. Ignition "ON".

  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

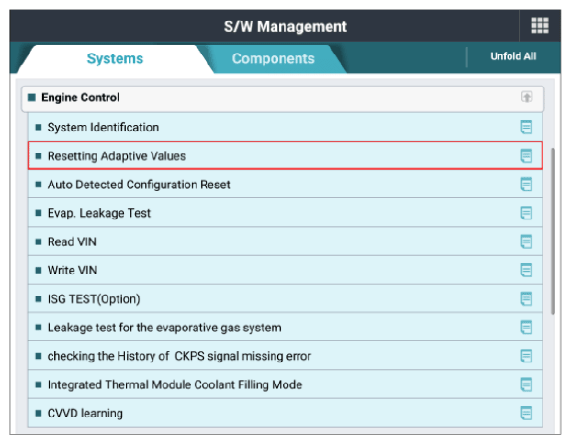

G13807887Courtesy of KIA MOTORS AMERICA, INC.

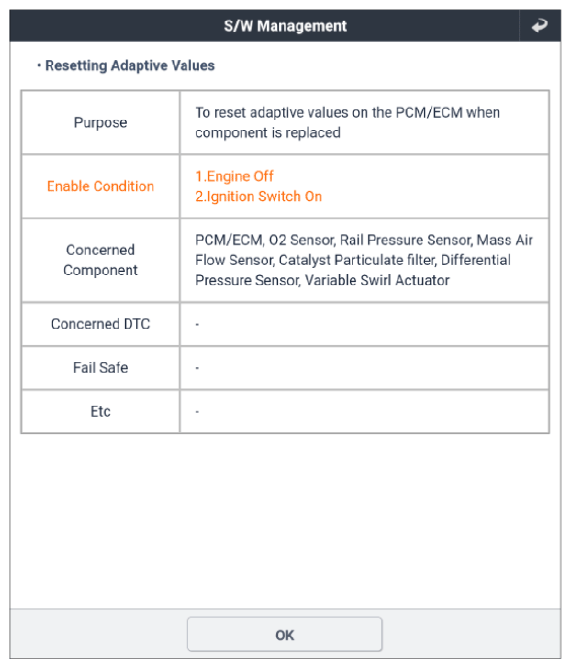

G13807888Courtesy of KIA MOTORS AMERICA, INC.

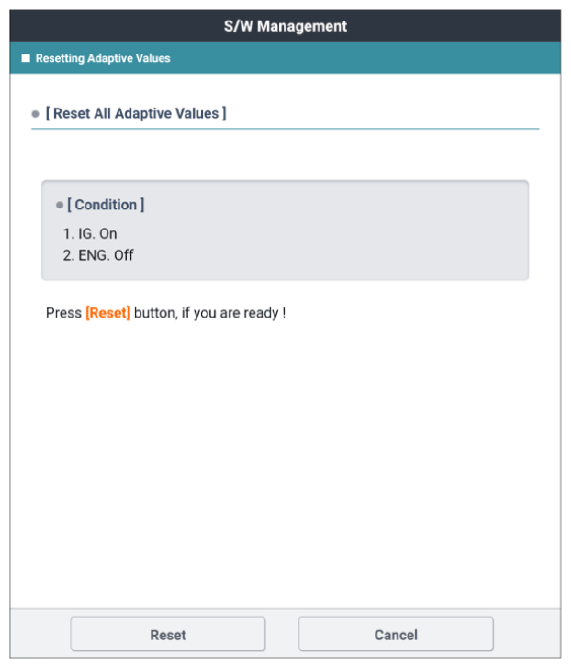

G13807889Courtesy of KIA MOTORS AMERICA, INC.

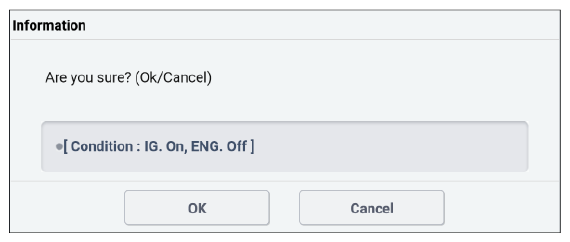

G13807890Courtesy of KIA MOTORS AMERICA, INC.

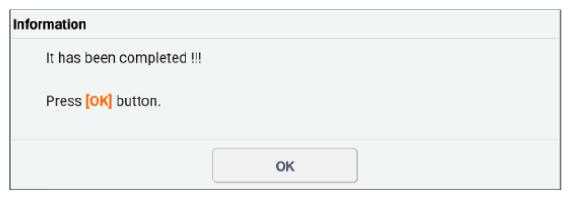

G13807891Courtesy of KIA MOTORS AMERICA, INC.
