Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 6

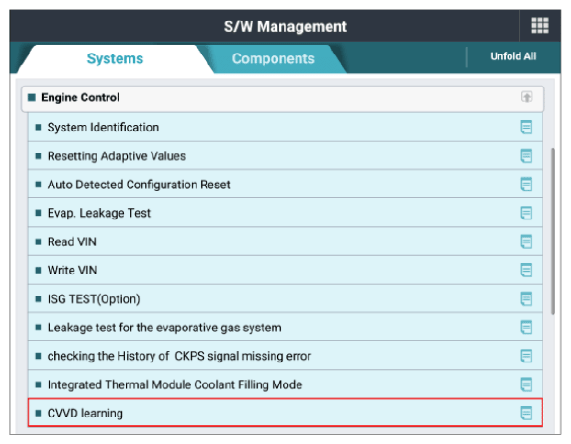

G13809606Courtesy of KIA MOTORS AMERICA, INC.

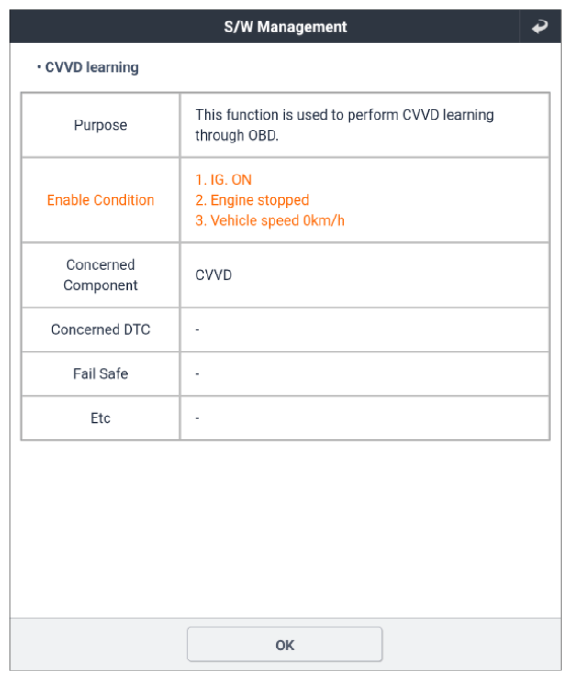

G13809607Courtesy of KIA MOTORS AMERICA, INC.

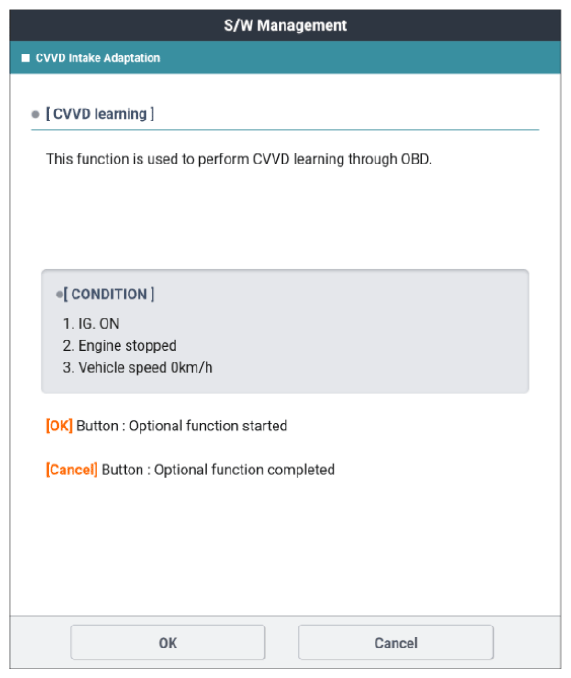

G13809608Courtesy of KIA MOTORS AMERICA, INC.

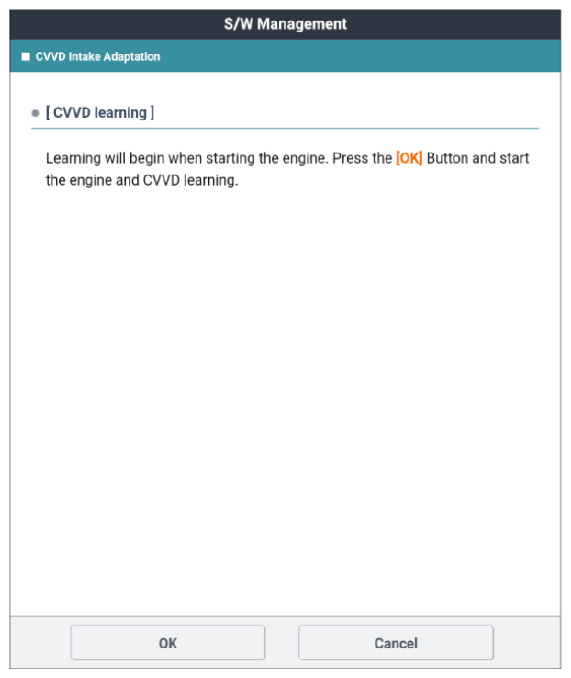

G13809609Courtesy of KIA MOTORS AMERICA, INC.
G13809610Courtesy of KIA MOTORS AMERICA, INC.
G13809611Courtesy of KIA MOTORS AMERICA, INC.
