Repair Procedures: Removal

Remove the battery and battery tray.
(Refer to " Removal ")
Drain the engine coolant.
(Refer to " Replacement And Air Bleeding " )

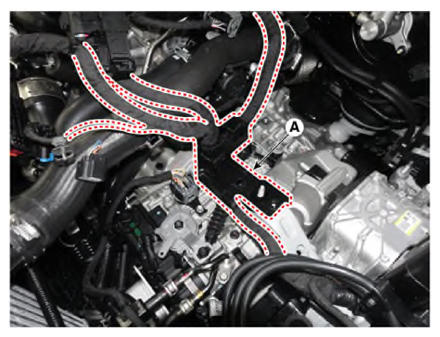

Separate the main wiring protector (A) from the body frame.

Courtesy of KIA MOTORS AMERICA, INC.

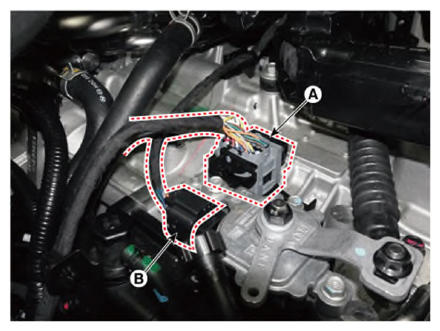

Disconnect the main connector (A) and position switch connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

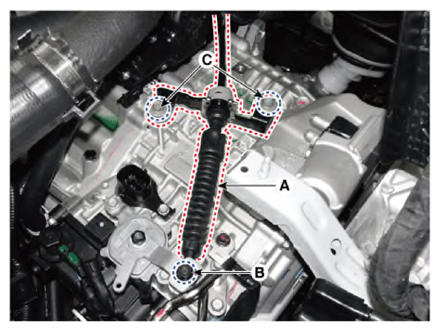

Remove the shift cable (A) after removing the nut (B) and bolts (C).
Tightening torque:
1. 9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)
2. 14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.9 - 15.9 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.

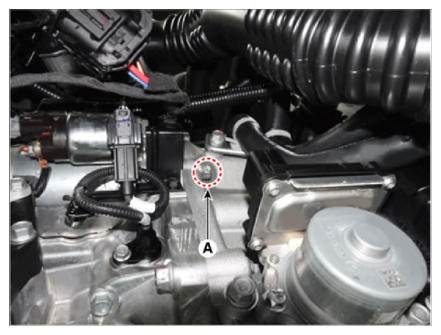

Remove the wiring bracket mounting bolt (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

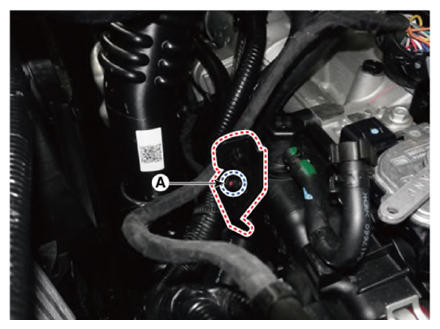

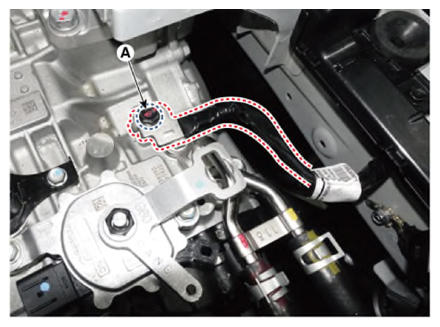

Remove the ground line after removing the bolt (A).
Tightening torque:

26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

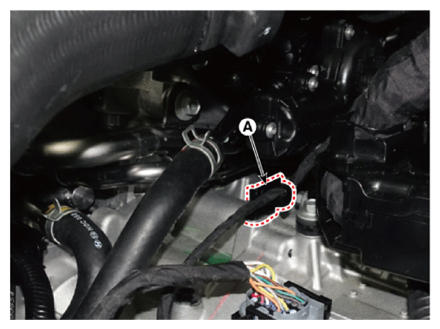

Remove the wiring fixing clip (A) from the bracket.

Courtesy of KIA MOTORS AMERICA, INC.

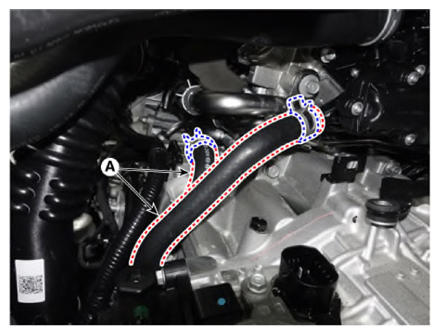

Separate the ATF cooler hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

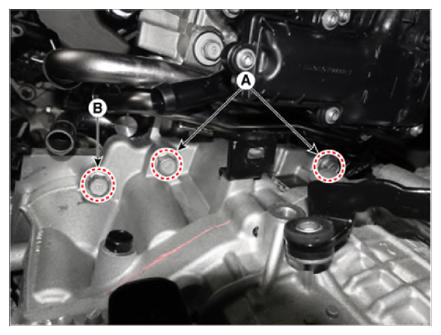

Remove the transaxle upper mounting bolts (A) and starter mounting bolt (B).
Tightening torque:
1. (A): 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb.ft)
2. (B): 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.

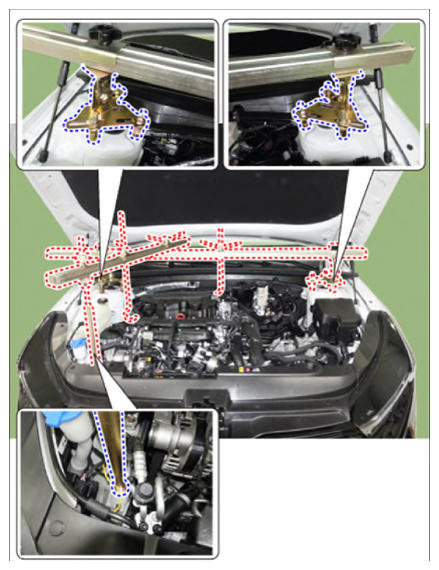

Assemble the engine support fixture on the engine room.
(Refer to " ENGINE SUPPORT FIXTURE ASSEMBLY DRAWING ")

Courtesy of KIA MOTORS AMERICA, INC.
Remove the under cover.
(Refer to " Removal and Installation ")

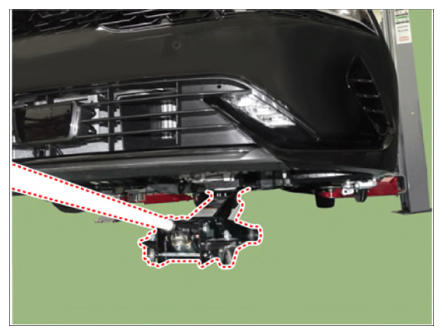

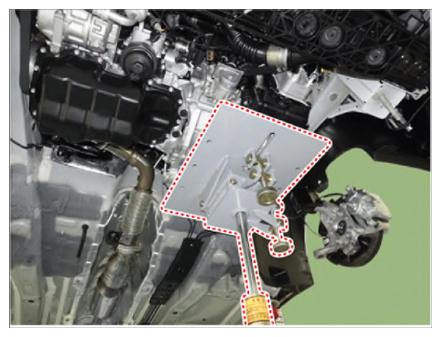

Support the transaxle with a jack.

Courtesy of KIA MOTORS AMERICA, INC.

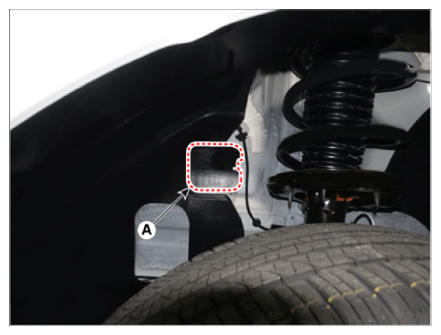

Remove the cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

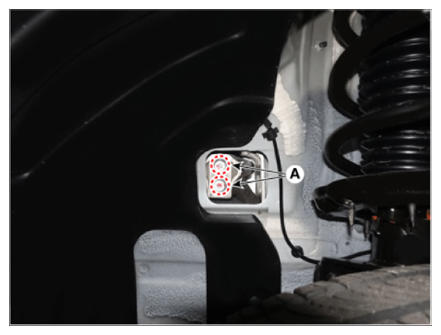

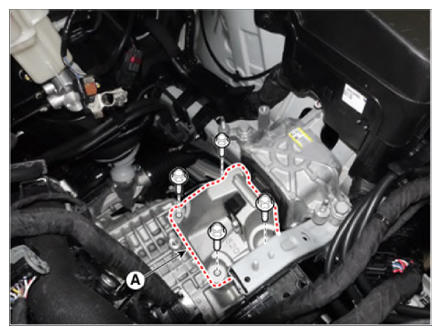

Remove the transaxle mounting bracket bolts (A).
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the transaxle support bracket (A).
Tightening torque:

58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the drive shaft assembly.
(Refer to " Removal ")
Remove the sub frame.
(Refer to " Removal ")

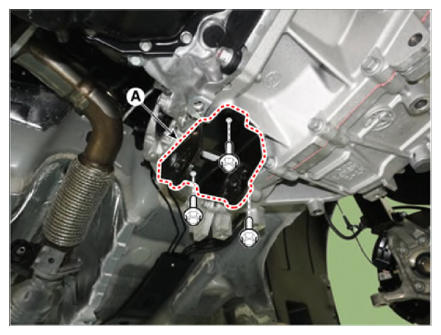

Remove the roll rod support bracket (A).
Tightening torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

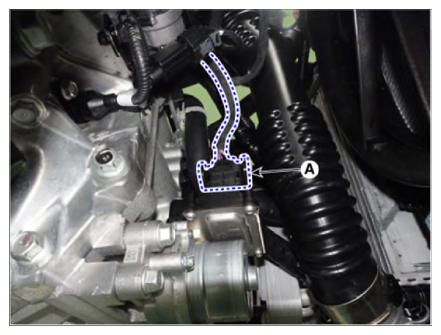

Disconnect the electric oil pump connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

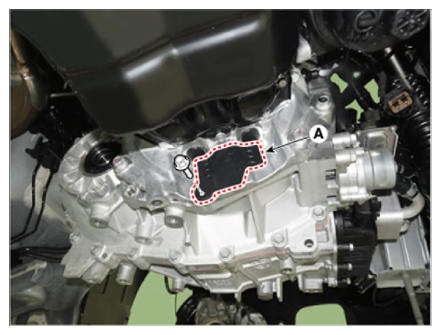

Remove the dust cover (A).
Tightening torque:

42.2 - 48.1 N.m (4.3 - 4.9 kgf.m, 31.1 - 35.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the torque converter mounting bolts (A) by rotating the crankshaft in the clockwise.
Tightening torque:

45.1 - 52.0 N.m (4.6 - 5.3 kgf.m, 33.3 - 38.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Support the transaxle safely with a jack.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the starter mounting bolt (A).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

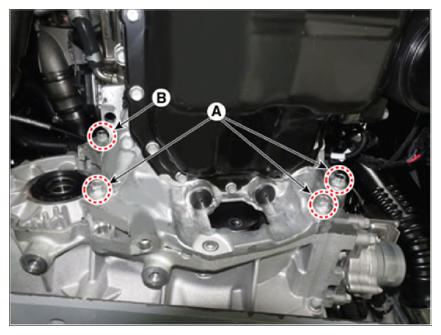

Remove the transaxle lower mounting bolts (A, B).
Tightening torque:
1. 39.2 - 46.1 N.m (4.0 - 4.7 kgf.m, 28.9 - 43.0 lb.ft)
2. 42.2 - 54.0 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.

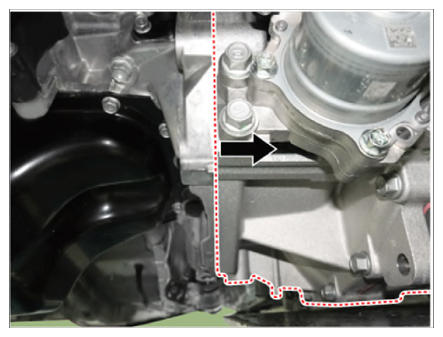

After separating the transaxle from the engine, remove the transaxle by lowering the jack slowly.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to damage other nearby systems or parts when removing the transaxle assembly.
