Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

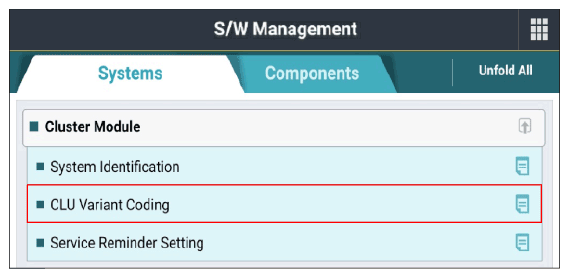

G13806840Courtesy of KIA MOTORS AMERICA, INC.

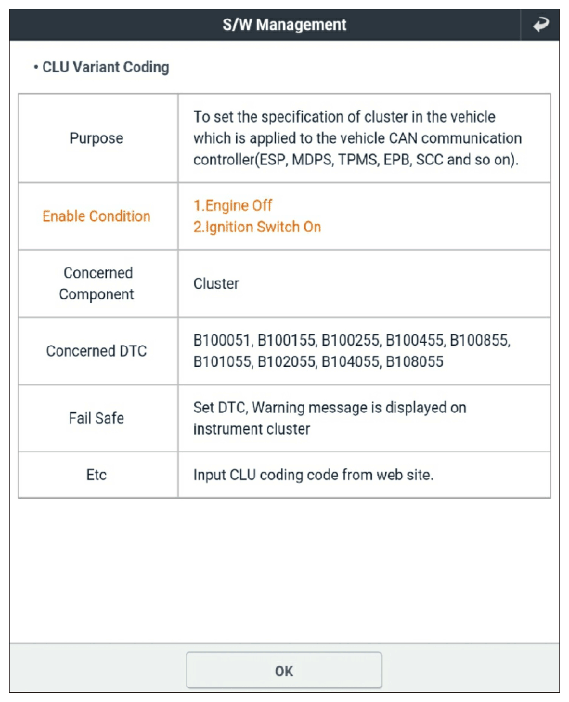

G13806841Courtesy of KIA MOTORS AMERICA, INC.

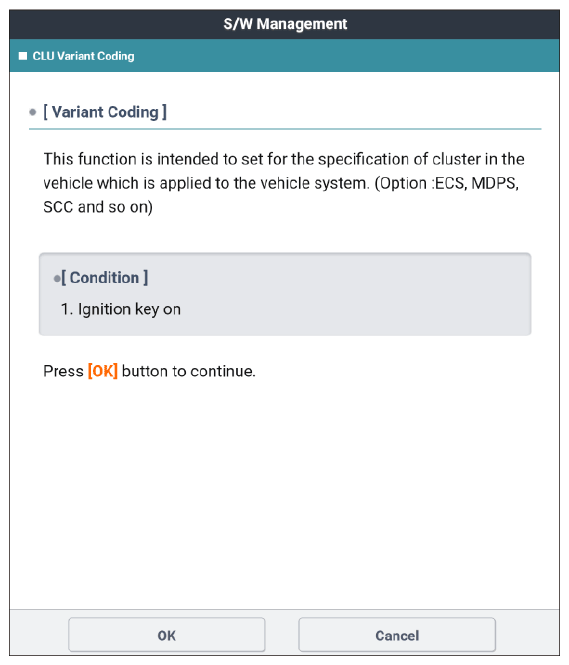

G13806842Courtesy of KIA MOTORS AMERICA, INC.

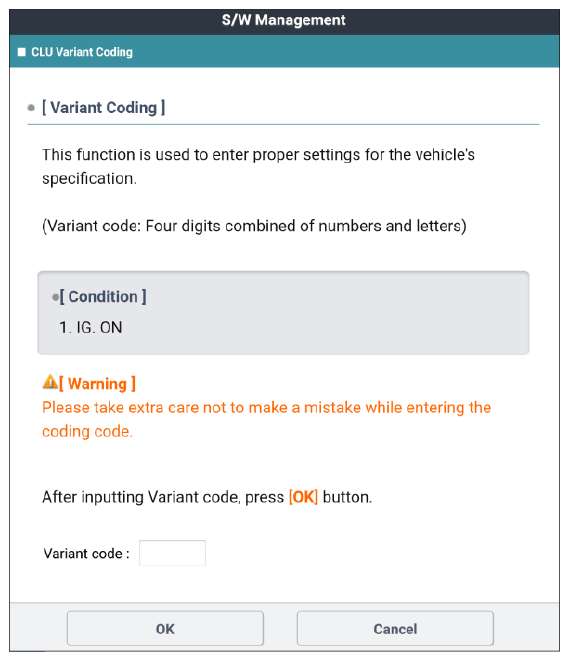

G13806843Courtesy of KIA MOTORS AMERICA, INC.

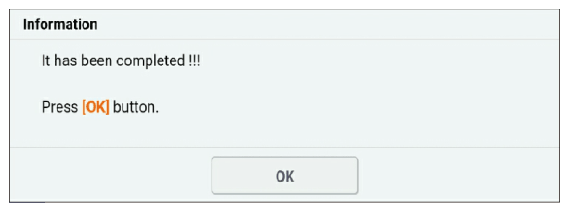

G13806844Courtesy of KIA MOTORS AMERICA, INC.
