Vehicle S/W Management

Inspection Condition Inspection Procedure Reference

  1. Ignition "ON".

  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

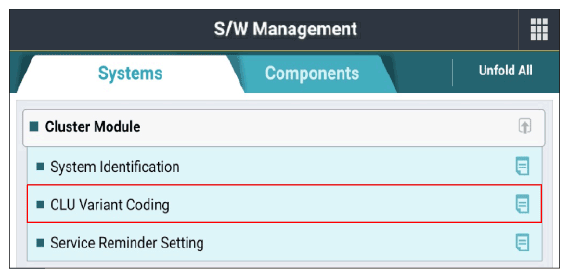

G13806912Courtesy of KIA MOTORS AMERICA, INC.

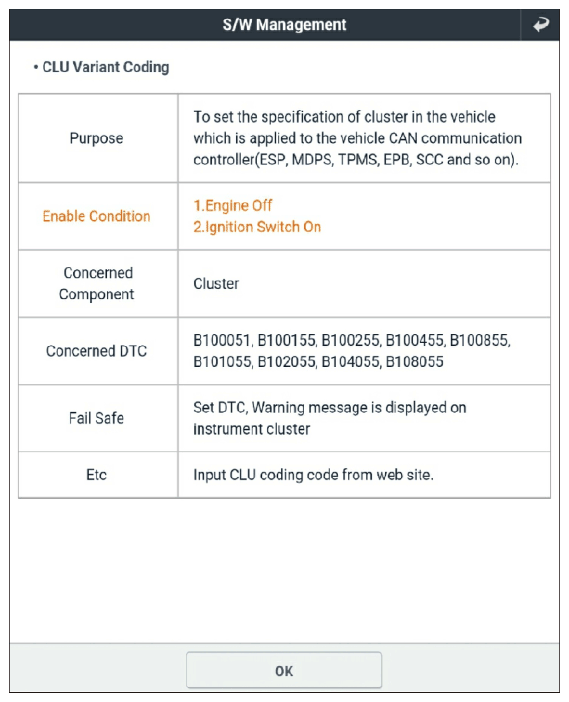

G13806913Courtesy of KIA MOTORS AMERICA, INC.

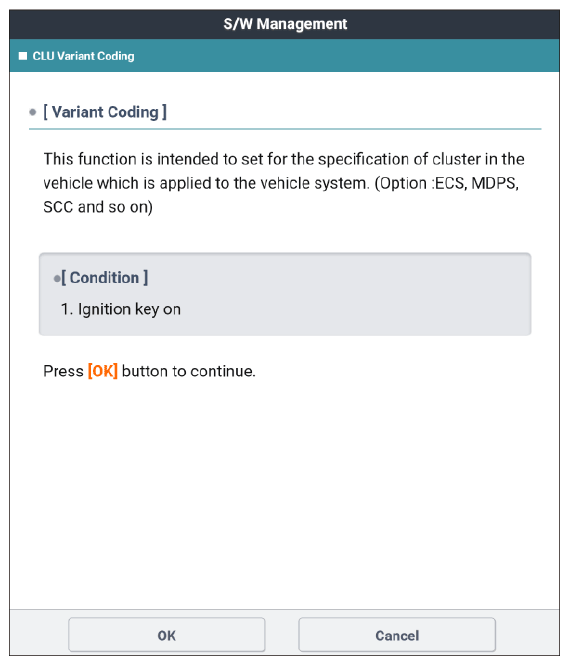

G13806914Courtesy of KIA MOTORS AMERICA, INC.

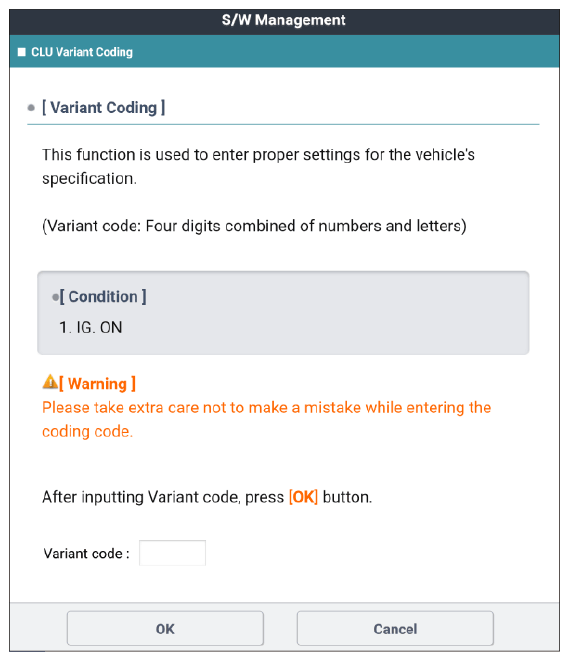

G13806915Courtesy of KIA MOTORS AMERICA, INC.

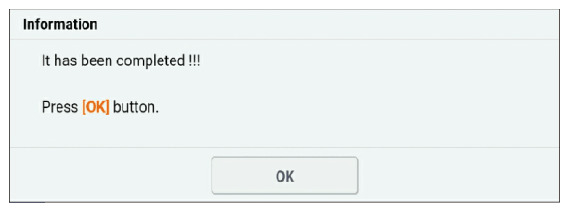

G13806916Courtesy of KIA MOTORS AMERICA, INC.
