Forward Collision-avoidance Assist (FCA)

  1. Operation specification
    Item Sensor Fusion (Front View Camera + Front Radar)
    Car Car Pedestrian Cyclist Junction
    Operation speed (Wheel speed) Warning 10 - 180 km/h (5 - 110 mile/h) 10 - 180 km/h (5 - 110 mile/h) 10 - 85 km/h (5 - 50 mile/h) 10 - 85 km/h (5 - 50 mile/h) 10 - 30 km/h (5 - 19 mile/h)
    FULL Braking 10 - 75 km/h (5 - 45 mile/h) 10 - 85 km/h (5 - 50 mile/h) 10 - 65 km/h (5 - 40 mile/h) 10 - 65 km/h (5 - 40 mile/h)
    Remarks Stationary Moving vehicle - -
    Warning level Warning Visible/Audible warning
    FULL Braking Visible/Audible warning + Engine drag + Full braking
    Alarm sensitivity (User setting menu) Normal - Late

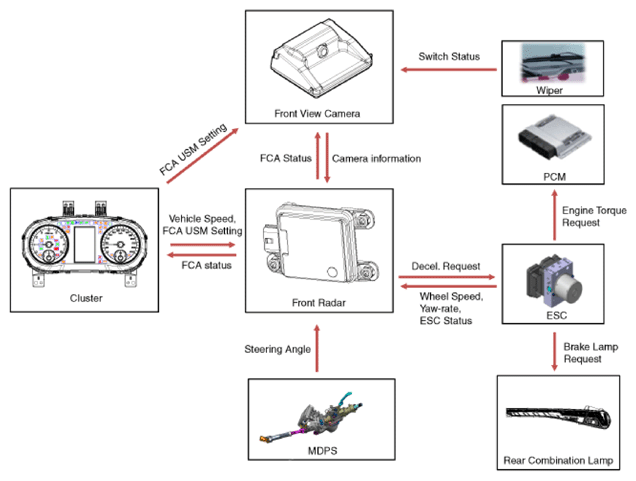

  2. System components
    G13836554Courtesy of KIA MOTORS AMERICA, INC.

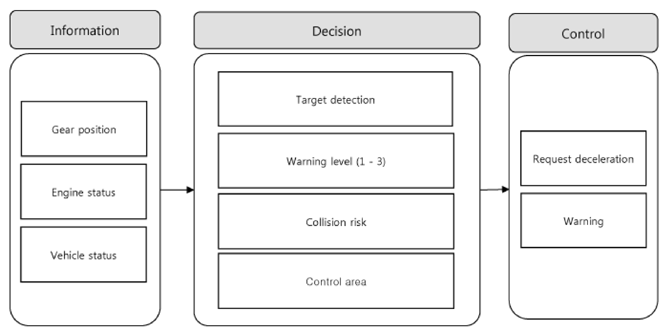

  3. System block diagram
    G13836555Courtesy of KIA MOTORS AMERICA, INC.

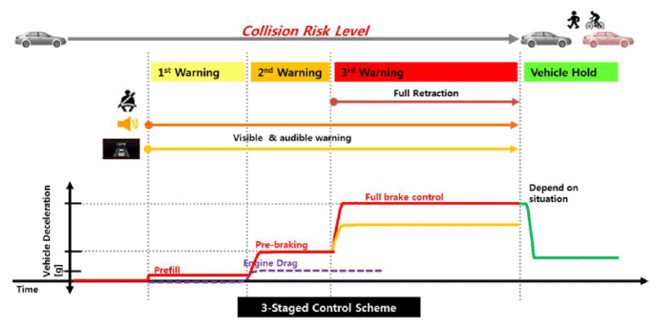

  4. System operation
    G13836556Courtesy of KIA MOTORS AMERICA, INC.
