Switch Input

  1. Operation Function

    Hazard lamp switch, Seat belt switch, Tailgate switch, Door switch, etc.

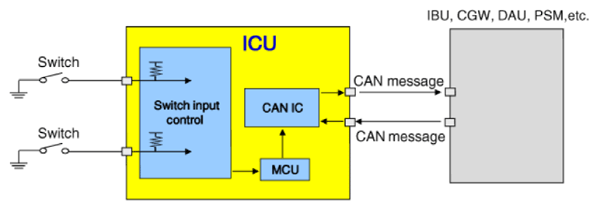

  2. Operation Description
    1. Determined switch operation status
    2. Switch status messages are sent to other modules (IBU, CGW, DAU, PSM, etc.) via CAN communication.
      G13835967Courtesy of KIA MOTORS AMERICA, INC.
