Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 6

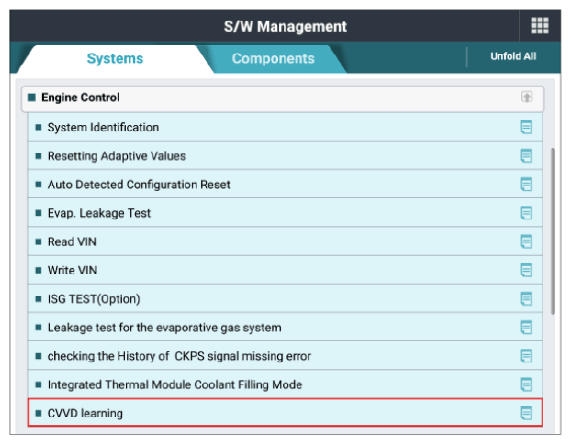

G13809522Courtesy of KIA MOTORS AMERICA, INC.

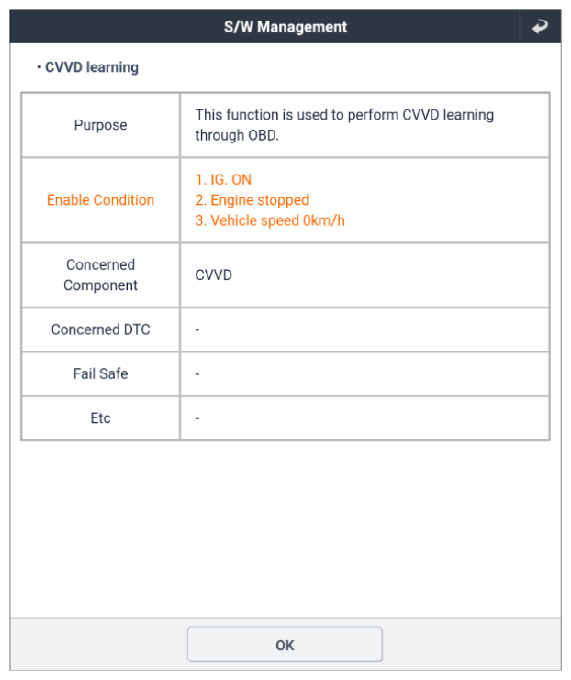

G13809523Courtesy of KIA MOTORS AMERICA, INC.

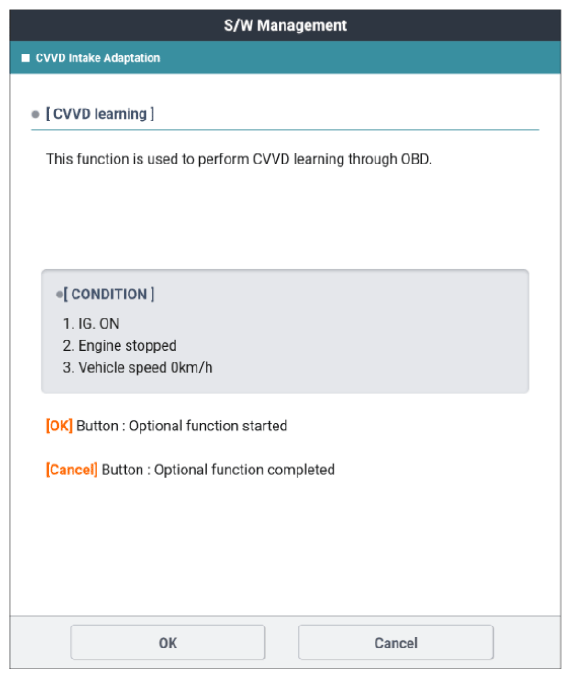

G13809524Courtesy of KIA MOTORS AMERICA, INC.

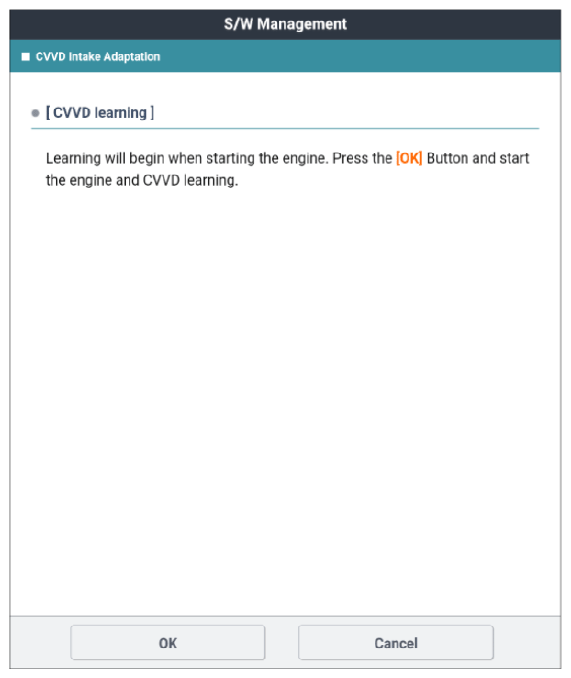

G13809525Courtesy of KIA MOTORS AMERICA, INC.

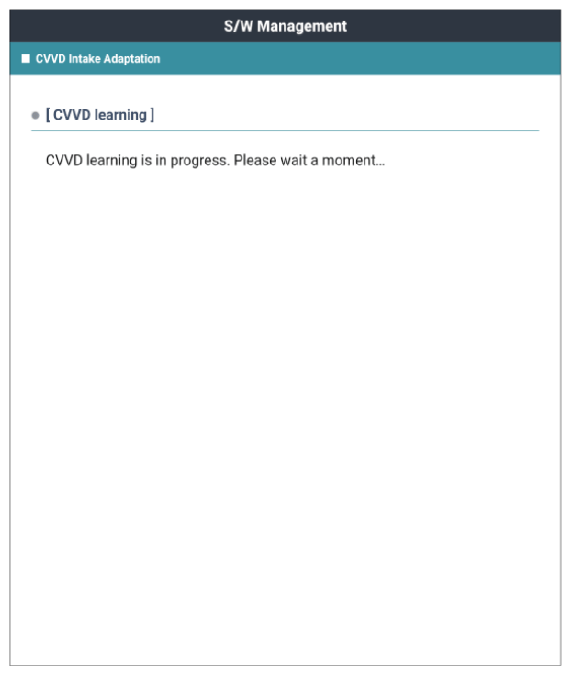

G13809526Courtesy of KIA MOTORS AMERICA, INC.

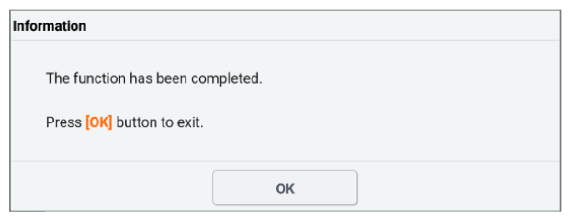

G13809527Courtesy of KIA MOTORS AMERICA, INC.
