Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis - 1.6L (5 Of 7)
>>
DTC P1932-00: Valve Duration Control Module EEPROM Internal Fault
>>
DTC Information
>>
Diagnostic Flow Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

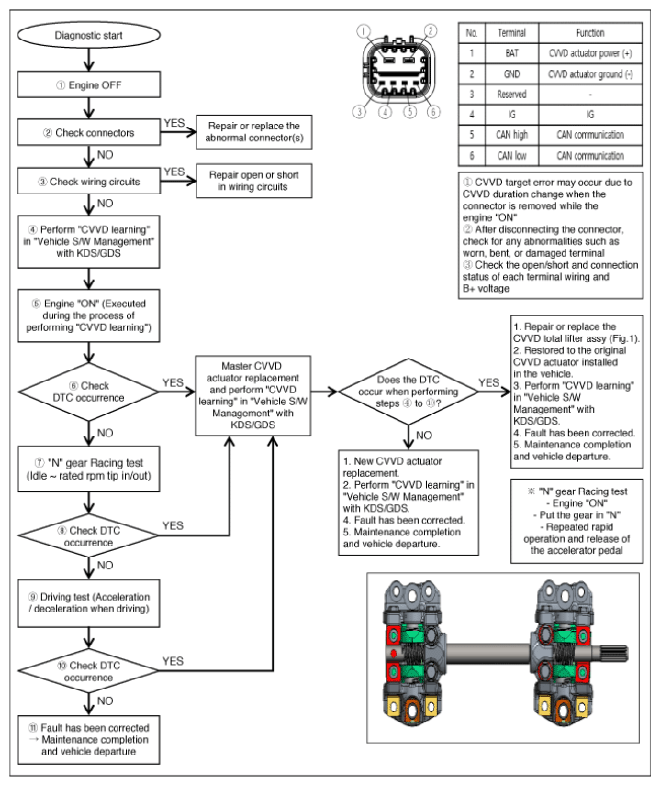

Diagnostic Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
