Kia
>>
2021
>>
K5 GT-Line, AWD
>>
Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis - 1.6L (7 Of 7)
>>
DTC U2001-00: Powertrain-Local CAN Communication Bus
>>
DTC Information
>>
Diagnostic Flow Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

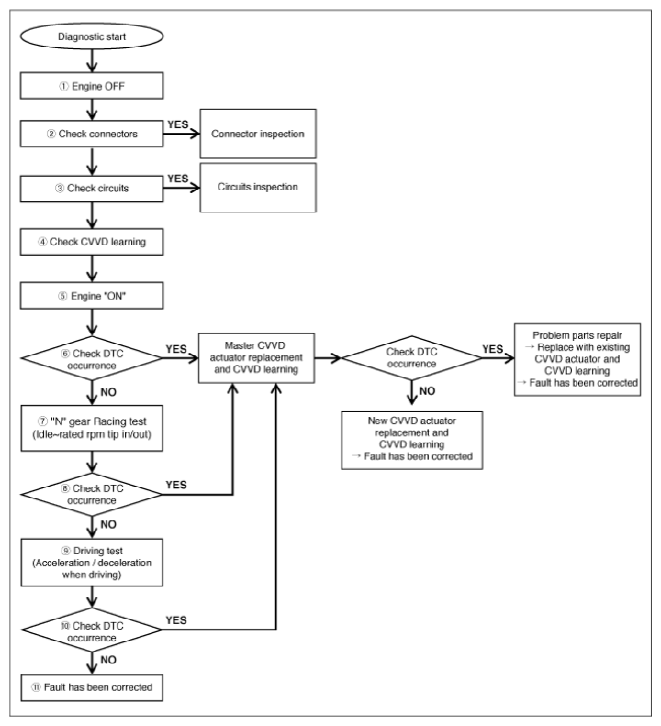

Diagnostic Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
