Components And Component Locations: Components

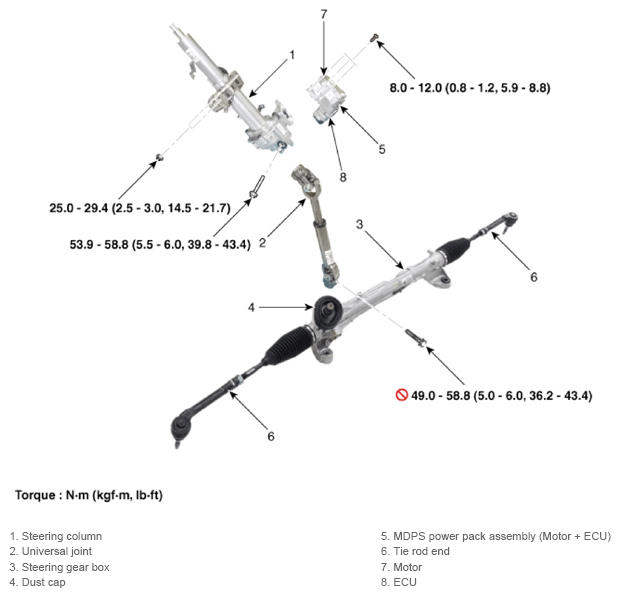

Fig 1: Motor Driven Power Steering Components Location With Torque Specification
G13834974Courtesy of KIA MOTORS AMERICA, INC.
