Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition switch "OFF".
  2. Connect KDS to Data Link Connector (DLC).
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics Backup & Input (TCU Replacement)" and Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 10

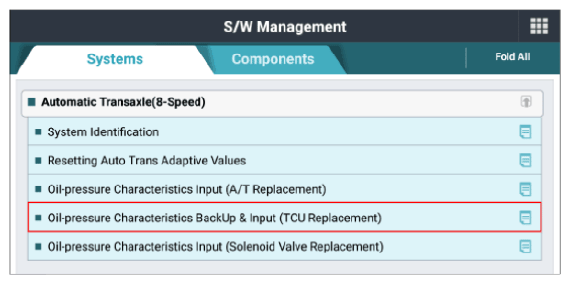

G13808536Courtesy of KIA MOTORS AMERICA, INC.

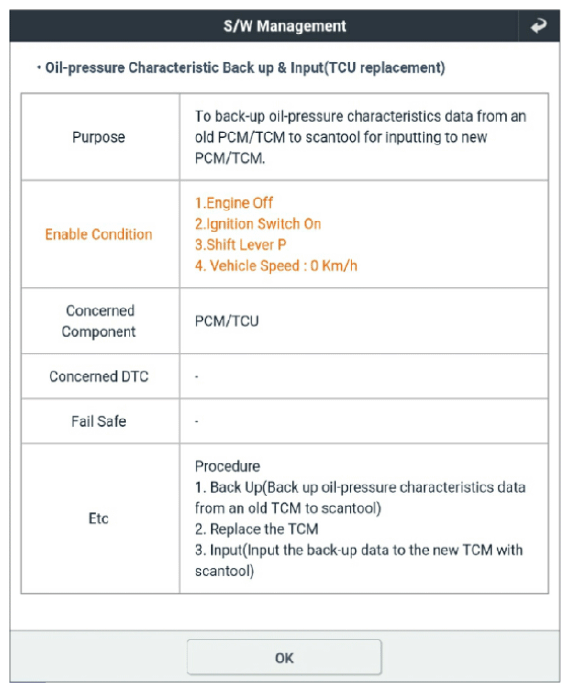

G13808537Courtesy of KIA MOTORS AMERICA, INC.

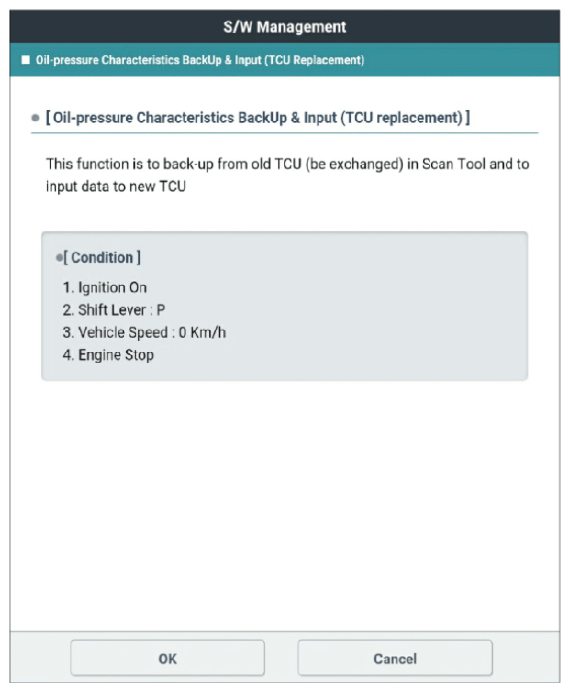

G13808538Courtesy of KIA MOTORS AMERICA, INC.

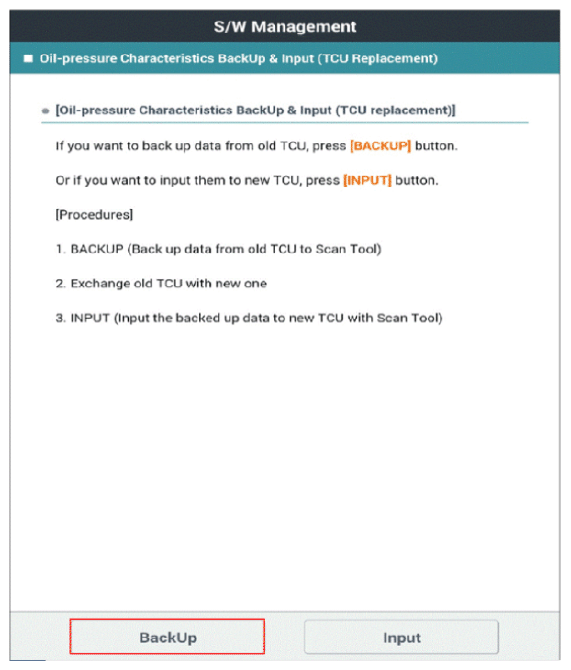

G13808539Courtesy of KIA MOTORS AMERICA, INC.

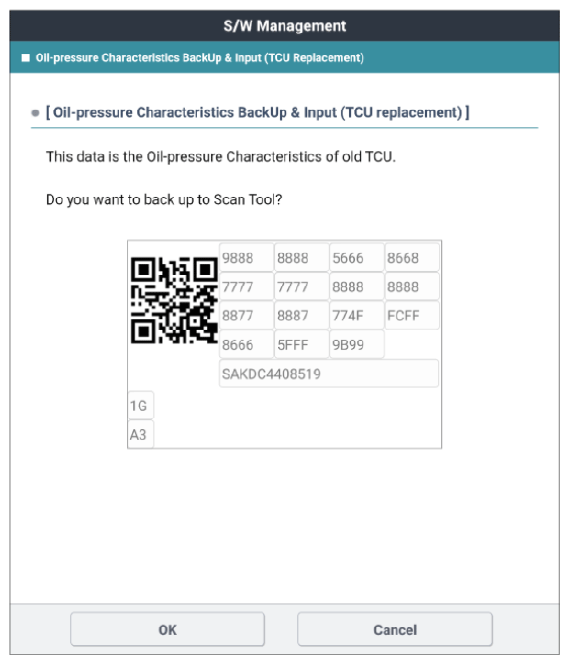

G13808540Courtesy of KIA MOTORS AMERICA, INC.

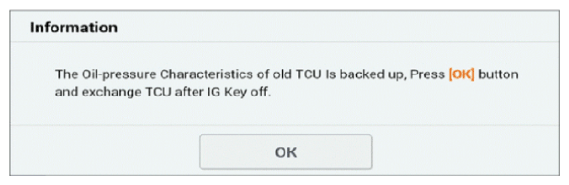

G13808541Courtesy of KIA MOTORS AMERICA, INC.

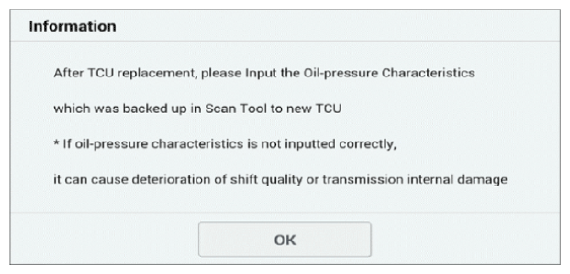

G13808542Courtesy of KIA MOTORS AMERICA, INC.

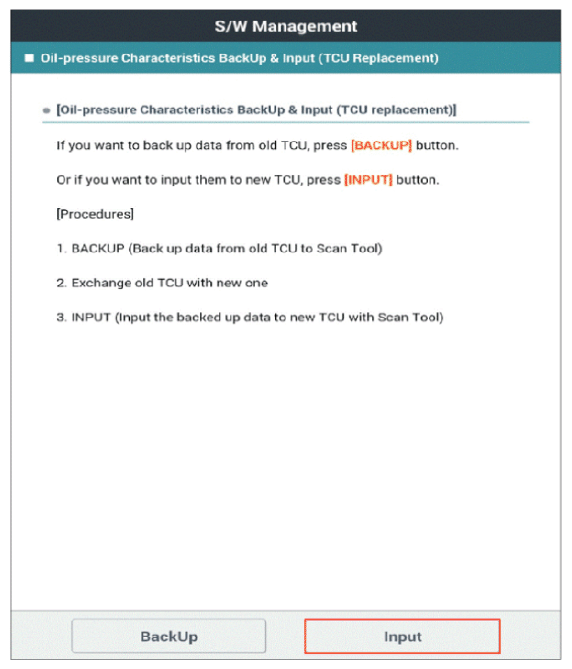

G13808543Courtesy of KIA MOTORS AMERICA, INC.

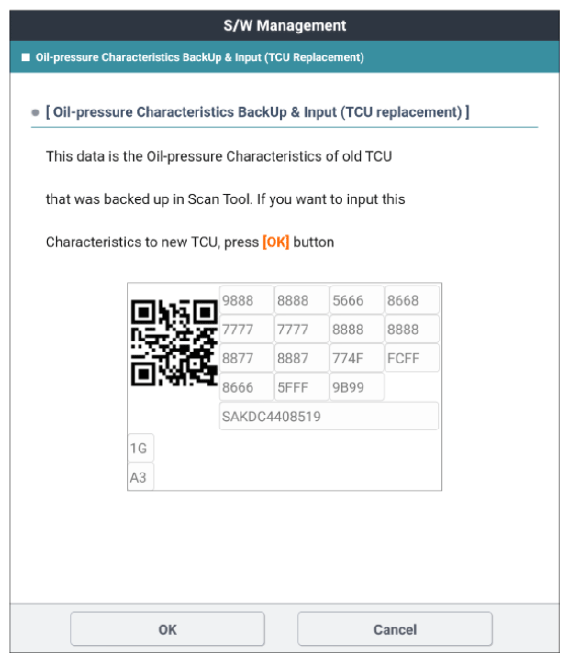

G13808544Courtesy of KIA MOTORS AMERICA, INC.

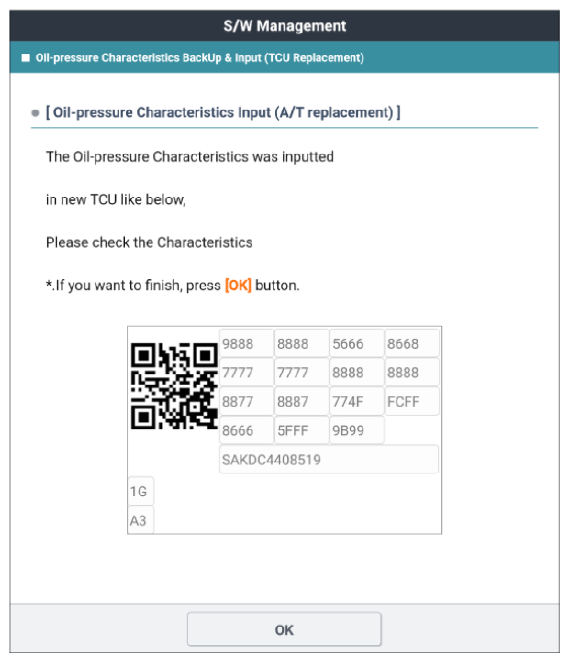

G13808545Courtesy of KIA MOTORS AMERICA, INC.
