Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
  2. Remove the right luggage side trim.

    (Refer to " Replacement  ")

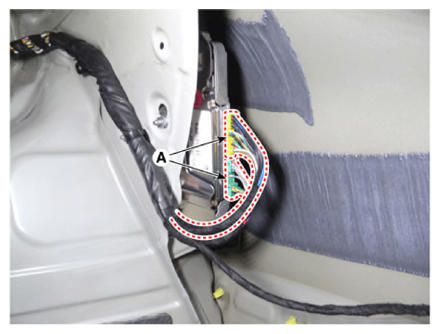

  3. Disconnect the external amp connectors (A).
    G13835873Courtesy of KIA MOTORS AMERICA, INC.

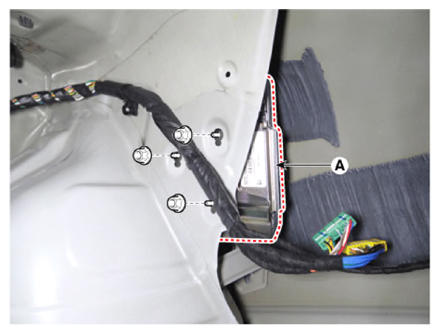

  4. Remove the external amp (A) by loosening the mounting nuts.
    G13835874Courtesy of KIA MOTORS AMERICA, INC.
