Components And Components Location: Components

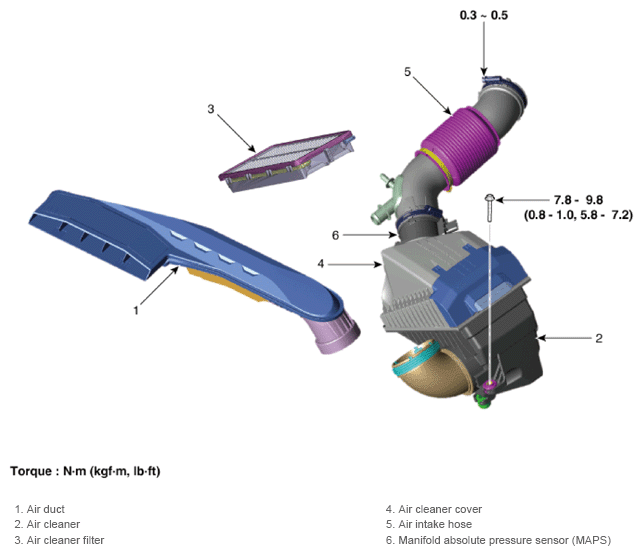

Fig 1: Air Cleaner Components Location With Torque Specification
G13833507Courtesy of KIA MOTORS AMERICA, INC.
