Engine Control System Diagnosis - 1.6L (5 Of 7)
>>
DTC P100A-00: Intake Valve Duration Slow Response Error Check
>>
DTC Information
>>
Diagnostic Flow Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

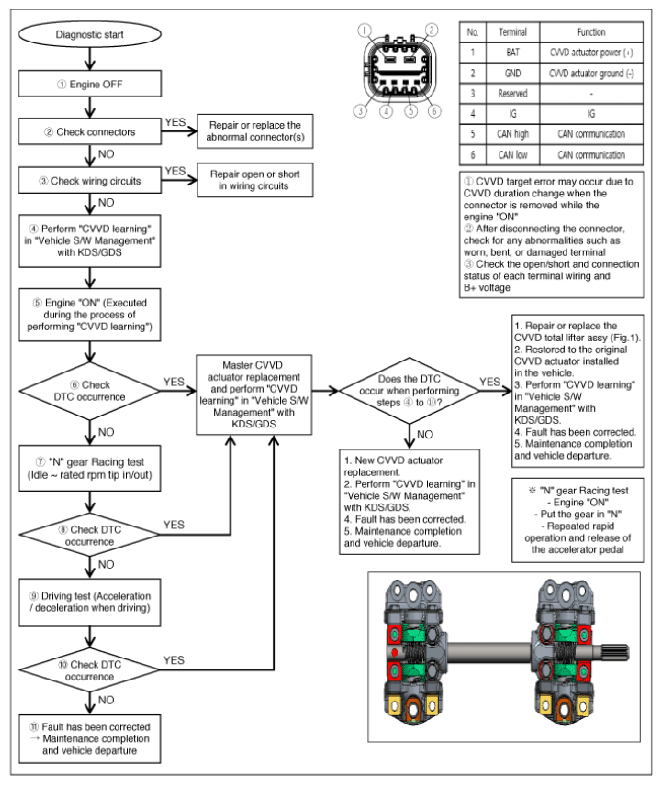

Diagnostic Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
