Circuit Diagram

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

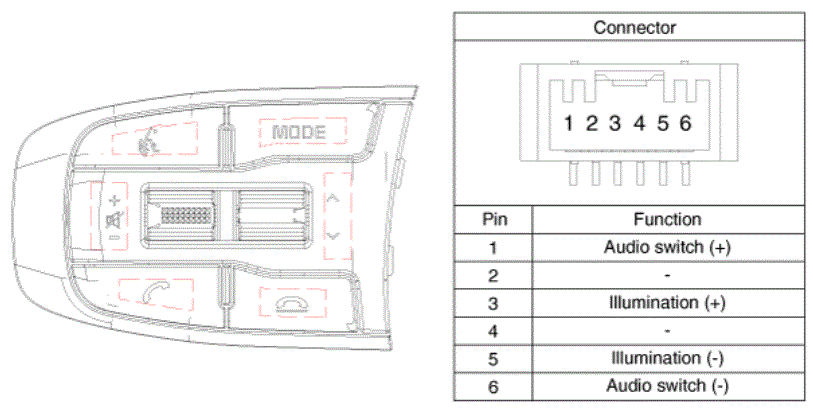

[Audio + Bluetooth + Voice]

G13835881Courtesy of KIA MOTORS AMERICA, INC.

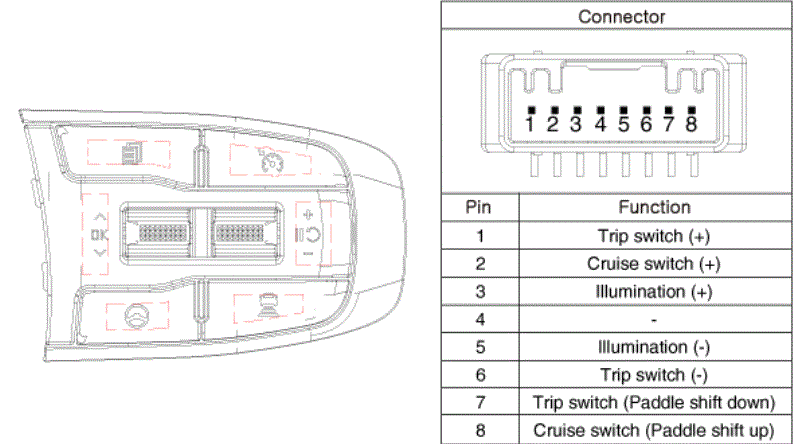

[Trip + SCC + LFA]

G13835882Courtesy of KIA MOTORS AMERICA, INC.
