Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference

  1. Ignition "ON".

  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

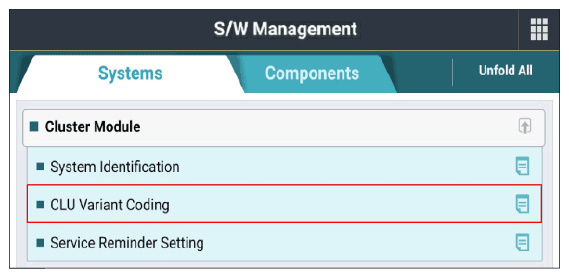

G13806923Courtesy of KIA MOTORS AMERICA, INC.

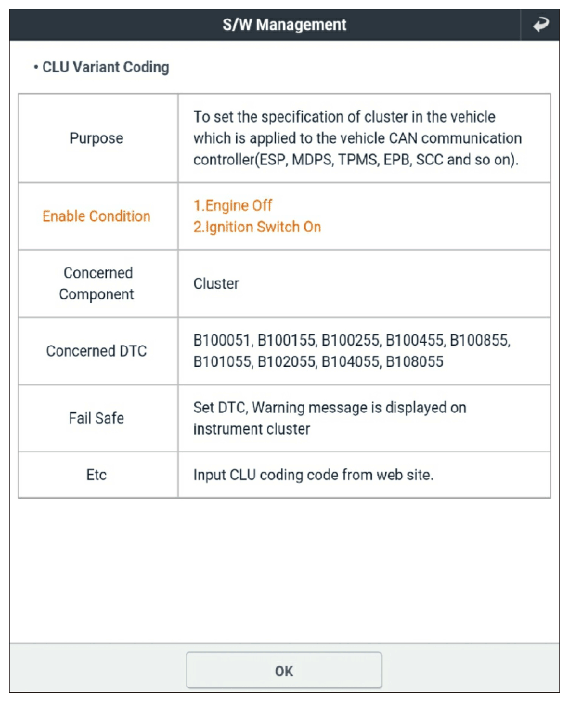

G13806924Courtesy of KIA MOTORS AMERICA, INC.
G13806925Courtesy of KIA MOTORS AMERICA, INC.

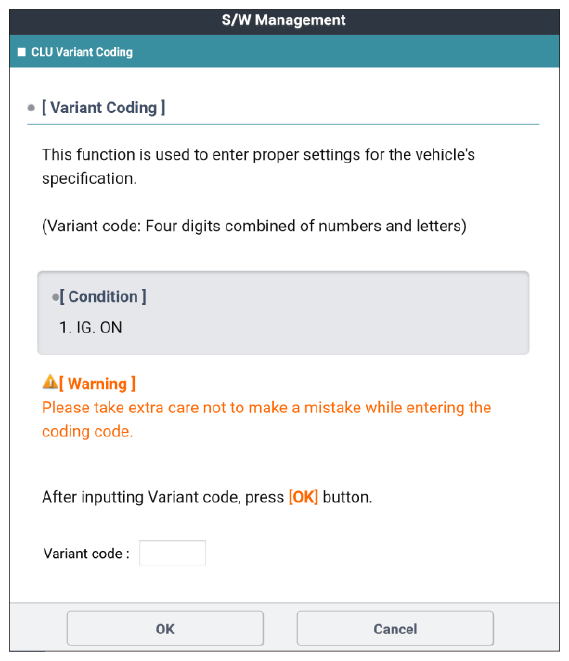

G13806926Courtesy of KIA MOTORS AMERICA, INC.

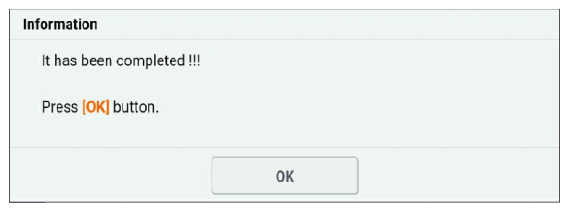

G13806927Courtesy of KIA MOTORS AMERICA, INC.
