Component Location

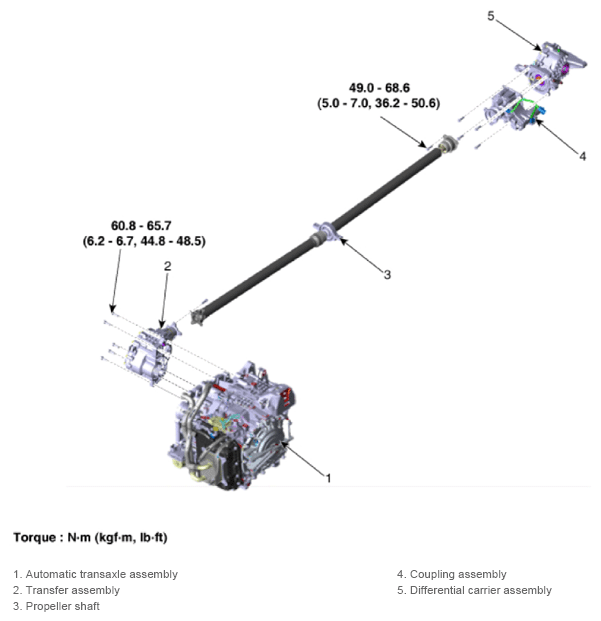

Fig 1: Front Wheel Transfer Assembly Components Location With Torque Specification
G13834473Courtesy of KIA MOTORS AMERICA, INC.
