Repair Procedures: Installation

Install in the reverse order of removal.

NOTE:

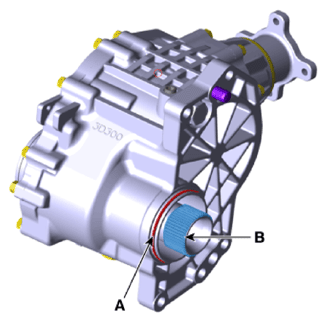

Be careful not to damage the O-ring (A). If the O-ring is damaged, replace with a new one.

Smear and cover splines (B) with high apply the high pressure grease (2~5 g) to the spline (B).

GREASE : GREASE SLP-1 or equivalent

Courtesy of KIA MOTORS AMERICA, INC.

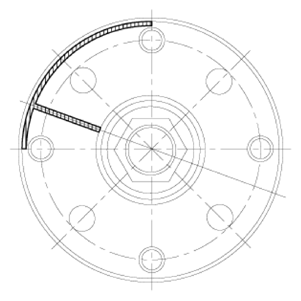

Install the propeller shaft to be near runout marking each other.
