Components And Components Location: Components

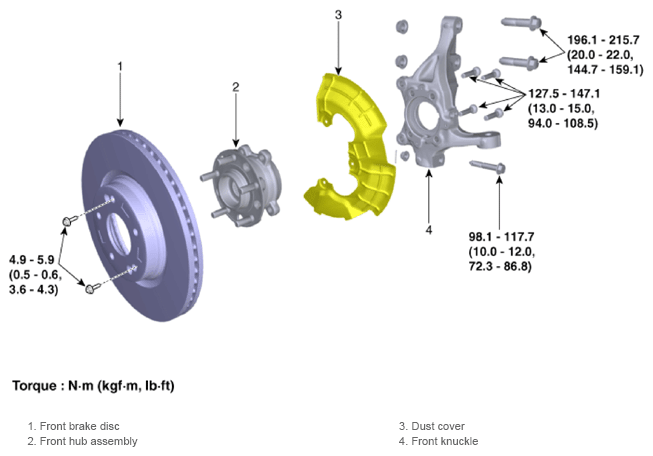

Fig 1: Front Hub And Front Axle Assembly Components Location With Torque Specification
G13834551Courtesy of KIA MOTORS AMERICA, INC.
