[CVVT System Mode]

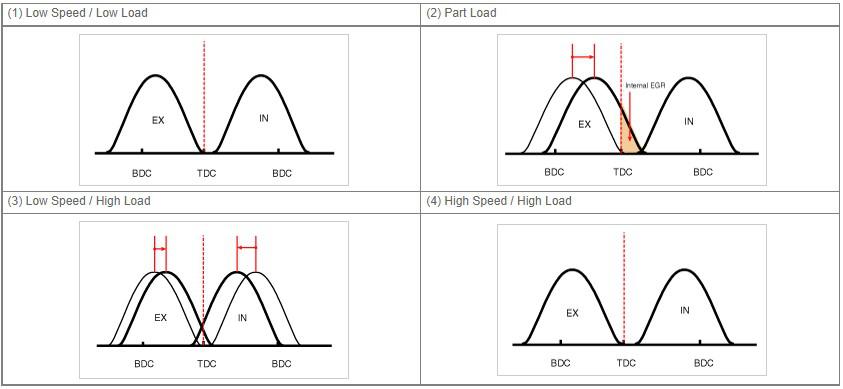

G13833813Courtesy of KIA MOTORS AMERICA, INC.
G13833814Courtesy of KIA MOTORS AMERICA, INC.
Driving Condition Exhaust Valve Intake Valve
Valve Timing Effect Valve Timing Effect
(1) Low Speed/Low Load Completely Advance * Valve Under-lap Completely Retard * Valve Under-lap
* Improvement of combustion stability * Improvement of combustion stability
(2) Part Load Retard * Increase of expansion work Retard * Reduction of pumping loss
* Reduction of pumping loss
* Reduction of HC
(3) Low Speed/High Load Retard * Increase of expansion work Advance * Prevention of intake back flow (Improvement of volumetric efficiency)
(4) High Speed/High Load Advance * Reduction of pumping loss Retard * Improvement of volumetric efficiency
