Repair Procedures: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Take care not to bend or scratch the trim and panels.
- Put on gloves to prevent hand injuries.
- Remove the front seat back cover.
- Remove the front seat cushion cover.
(Refer to " Replacement ")

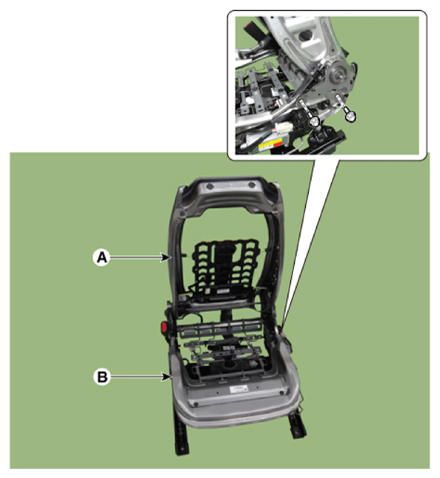

- Loosen the mounting bolts and remove the front seat back frame (A) and front seat cushion frame (B).
Tightening torque:
44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb-ft)
- Install in the reverse order of removal.
Information
- For the seat equipped with side airbag, remove the side airbag from the seat frame assembly.
(Refer to " Removal ")
- Before service, be fully aware of precautions and service procedure relevant to air bag.
(Refer to " Side Airbag (SAB) Module ")
- For the seat equipped with side airbag, remove the side airbag from the seat frame assembly.
