Removal And Installation

Disconnect the (-) battery terminal.
Remove the front wheel and tire.
(Refer to " Removal ")

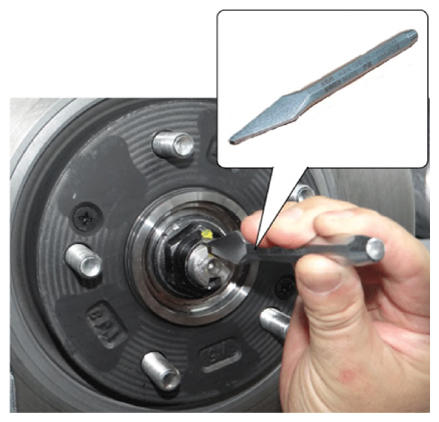

Unlock the driveshaft lock hub nut caulking, by hammering on a chisel.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: If there is screw thread (A) on the end of the nut, unlock the caulking by using a chisel and then remove the nut to prevent damaging driveshaft screw thread.

Courtesy of KIA MOTORS AMERICA, INC.

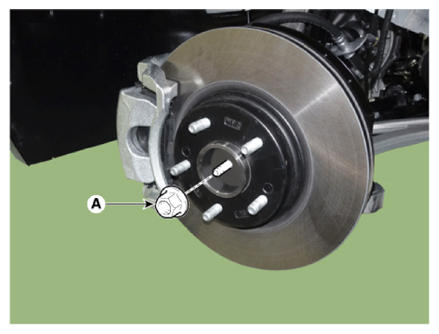

Remove the caulking nut (A) from the front axle.

Tightening torque:

294.2 - 313.8 N.m (30.0 - 32.0 kgf.m, 217.0 - 231.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

The driveshaft lock nut must be replaced with new one. When replacing the drive lock hub nut, use only the nut with screw thread (A) on the end.

Courtesy of KIA MOTORS AMERICA, INC.

When replacing the drive lock hub nut, use only the nut with screw thread (A) on the end.

Courtesy of KIA MOTORS AMERICA, INC.

Tighten the driveshaft lock hub nut to the specified tightening torque, and caulk by using a chisel and hammer.

If there are two key seats, perform on all two seats.

Caulking depth (A) : 1.5 mm (0.0591 in)

Courtesy of KIA MOTORS AMERICA, INC.

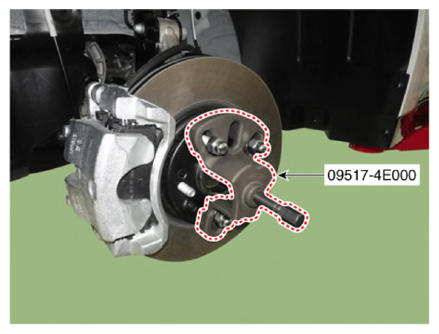

Disconnect the driveshaft from the axle hub by using the SST (09517-4E000).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Removing the driveshaft, do not force pull or over deflect the axle.
Remove the front brake disc.
(Refer to " Removal ")

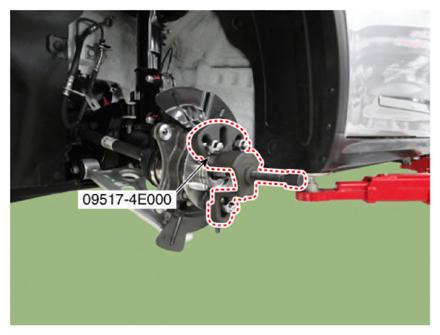

Using a SST (09517-4E000), disconnect the driveshaft from the axle hub.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Do not pull or twist excessively to remove the axle when the drive shaft is disassembled.

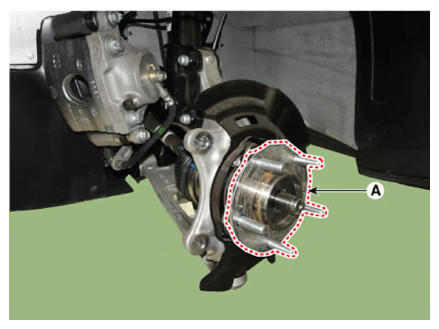

Remove the bolts and remove the hub bearing assembly (A) from the front knuckle.
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
