Vehicle S/W Management: Notes

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5
G13810982Courtesy of KIA MOTORS AMERICA, INC.

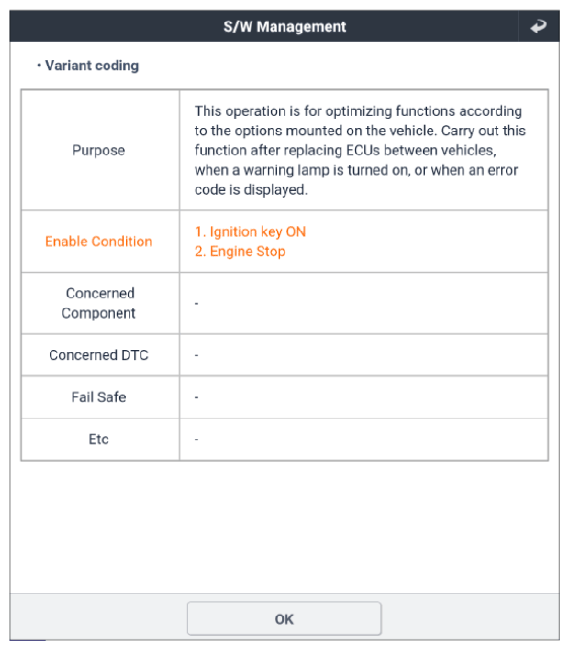

G13810983Courtesy of KIA MOTORS AMERICA, INC.

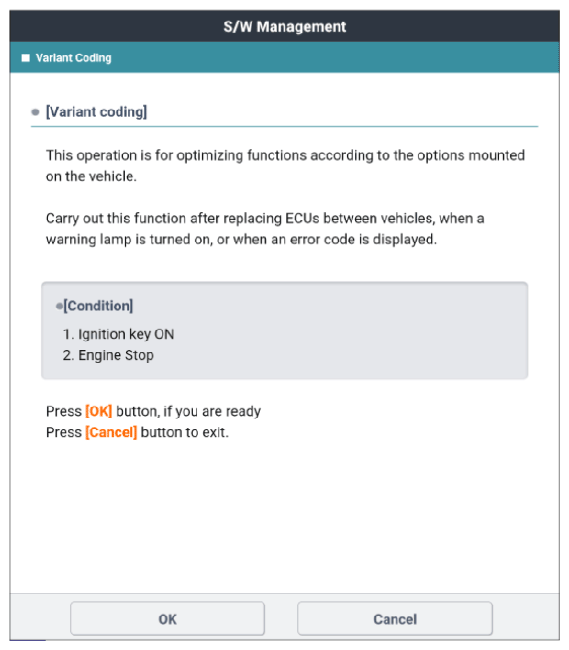

G13810984Courtesy of KIA MOTORS AMERICA, INC.

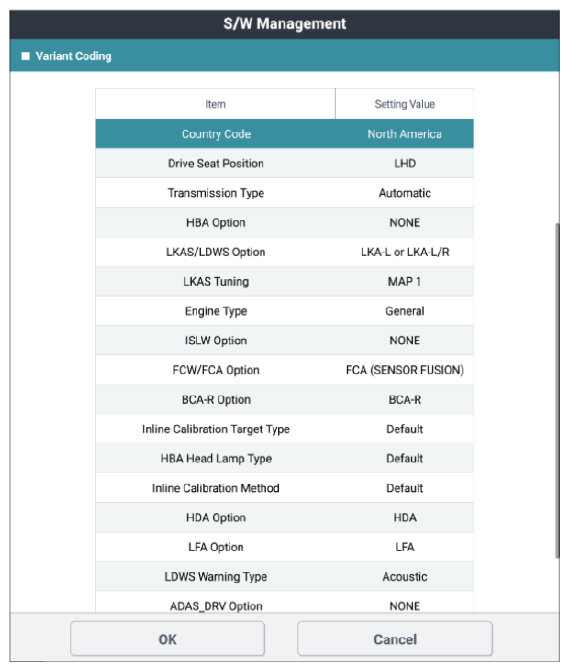

G13810985Courtesy of KIA MOTORS AMERICA, INC.
G13810986Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON". (with calibration target)
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 9
