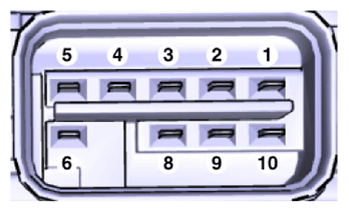

Connector And Terminal Function

G13837634Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
1 Fuel sender (-)
2 Fuel pressure sensor signal
3 Fuel pressure sensor ground
4 Ground
5 CAN_LOW
6 Fuel sender (+)
7 -
8 Fuel pressure sensor (+)
9 CAN_HIGH
10 Battery (+)
