Circuit Inspection

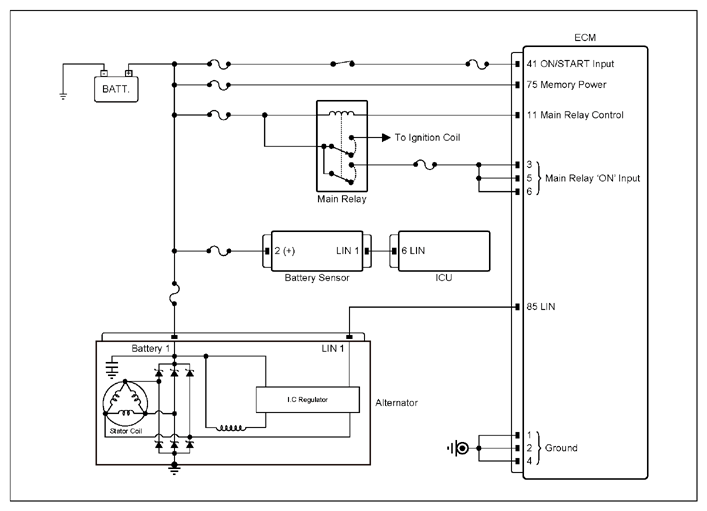

G13830635

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Battery sensor connector	2 (+)	Chassis ground	-	B+

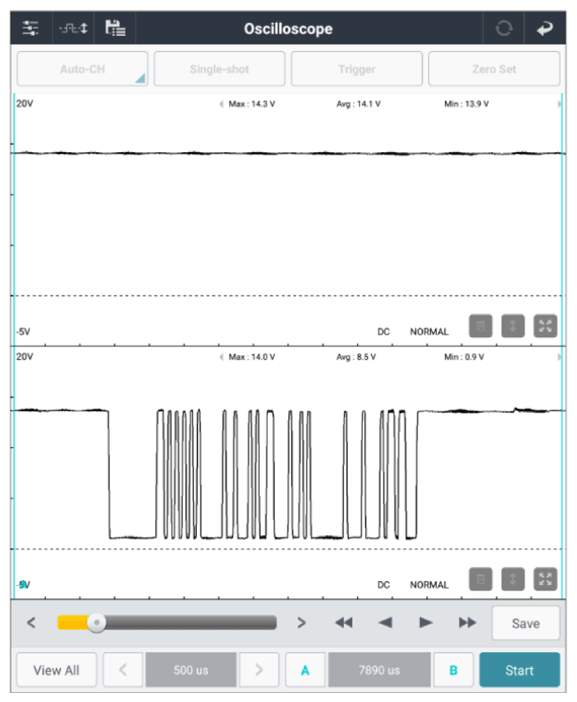

Engine "ON".	Battery sensor connector	2 (+)	Chassis ground	-	Fig.1
Engine "ON".	Battery sensor connector	1 (LIN)	Chassis ground	-	Fig.1

G13830636

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the battery sensor and Go to "VERIFICATION OF REPAIR " procedure.
