Component Inspection: Notes
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

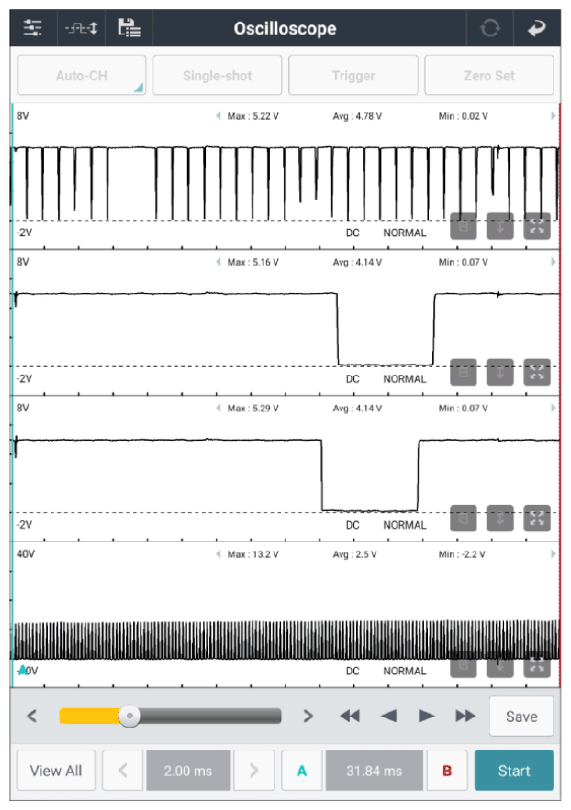

CKPS connector | 1 (signal) | CMPS - In connector | 1 (signal) | Fig.1 |
| CMPS - Ex connector | 1 (signal) | E-CVVT connector | 2 (motor (+)) | ||
Good
- Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the E-CVVT and Go to "VERIFICATION OF REPAIR " procedure.
* In case of replacing the component, perform following "Vehicle S/W Management" procedure.
