Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 7

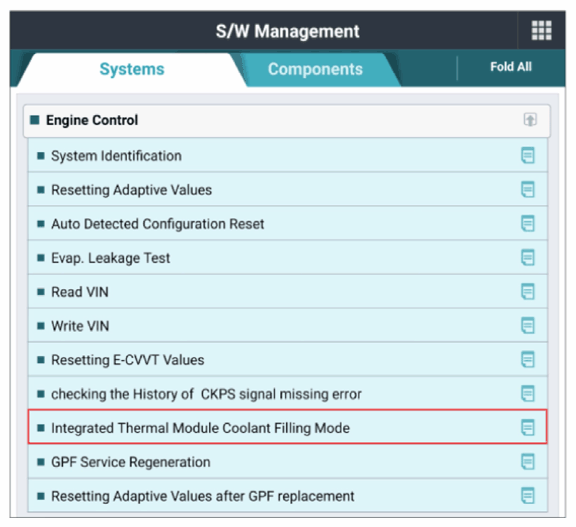

G13830085Courtesy of KIA MOTORS AMERICA, INC.

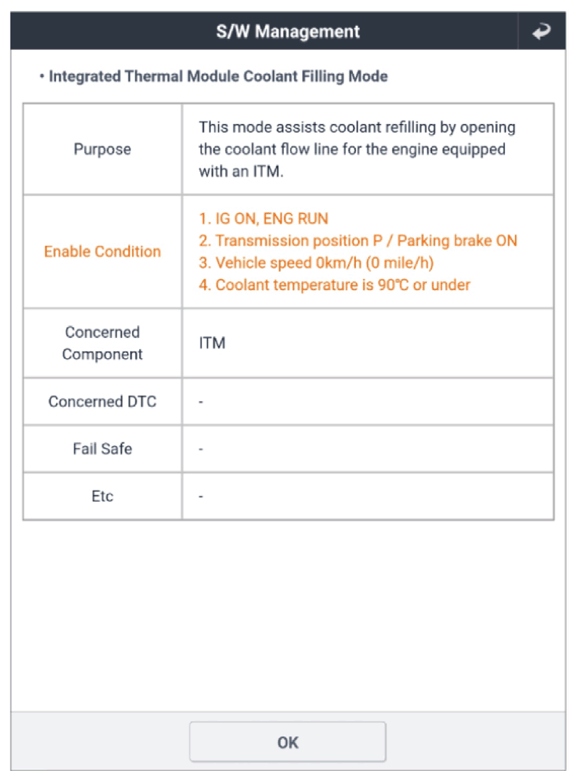

G13830086Courtesy of KIA MOTORS AMERICA, INC.

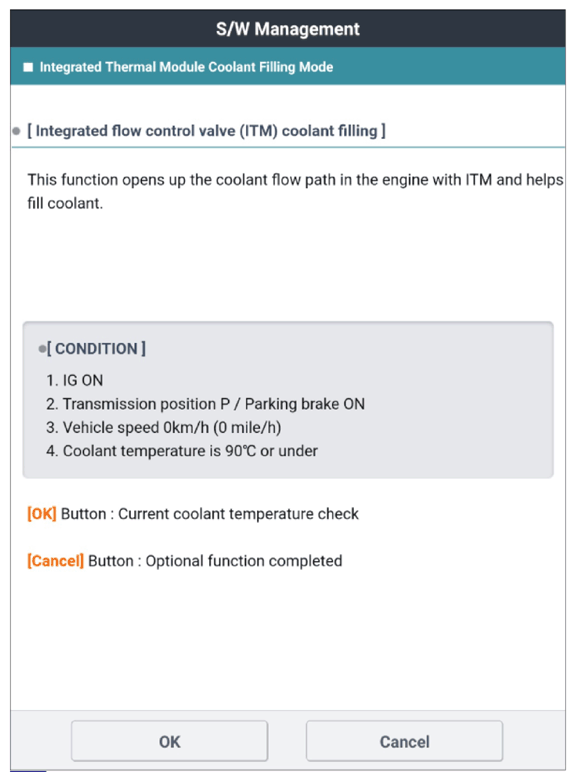

G13830087Courtesy of KIA MOTORS AMERICA, INC.

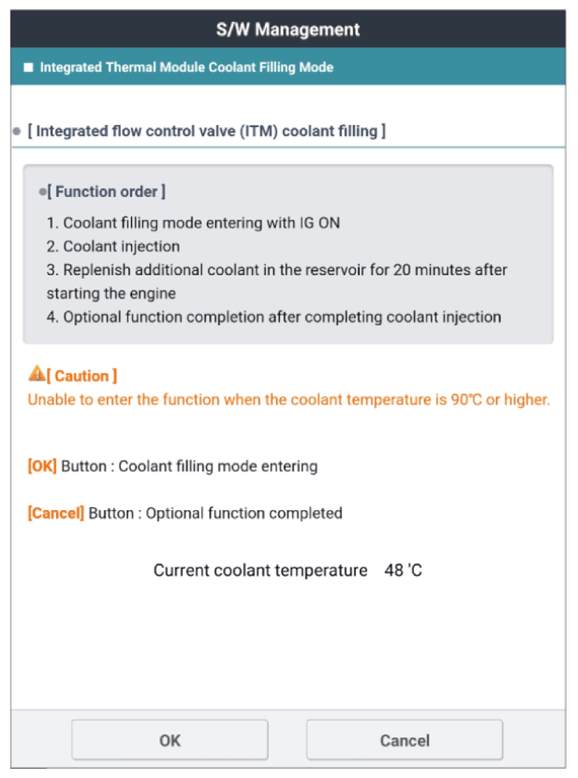

G13830088Courtesy of KIA MOTORS AMERICA, INC.

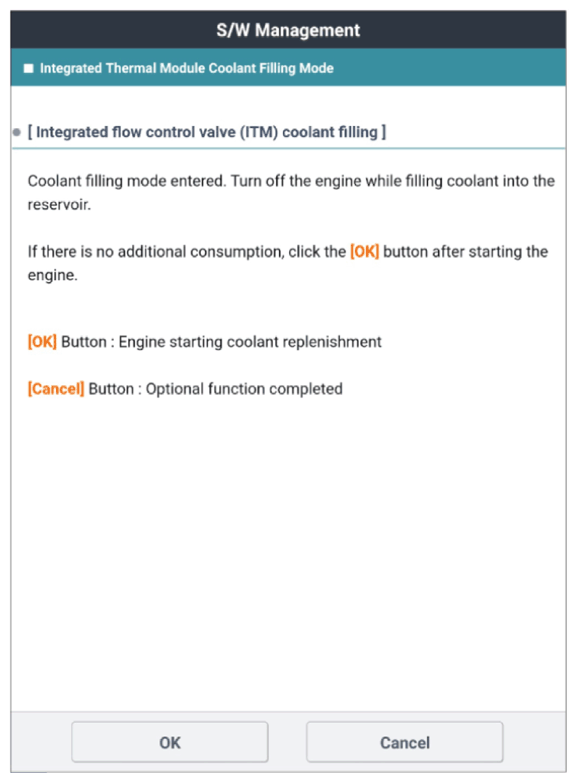

G13830089Courtesy of KIA MOTORS AMERICA, INC.

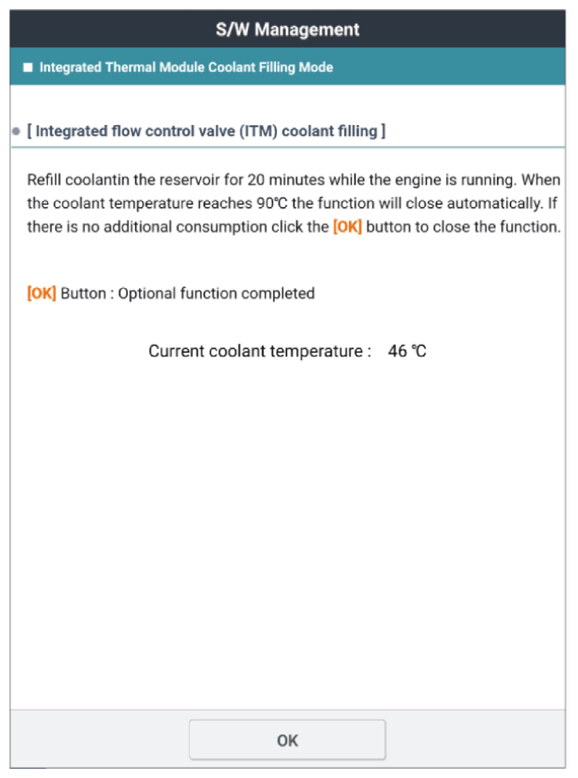

G13830090Courtesy of KIA MOTORS AMERICA, INC.

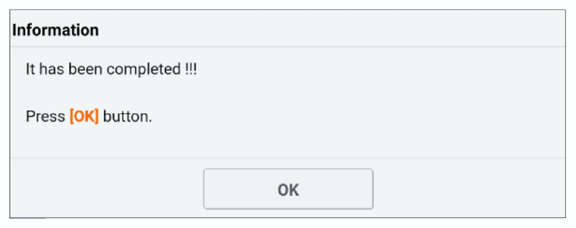

G13830091Courtesy of KIA MOTORS AMERICA, INC.
