Repair Procedures: Inspection

Information

Inspect the following items by referring to inspection flow chart.

(Refer to " TROUBLESHOOTING  ")

1. Check the diagnostic trouble codes (DTC) using KDS.
2. Check that "N" range setting matches.

   (Refer to " INSTALLATION  ")

3. Check the free play for shift cable.

   (Refer to " INSTALLATION  ")

4. Inspect connector thoroughly for looseness, poor connection, bending, corrosion, contamination, deformation, or damage.
5. Inspect the wiring connection of junction box power terminal.

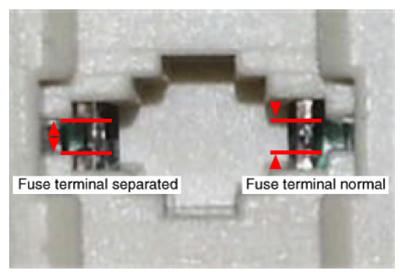

   1. Check for separation of fuse holder and check that the holder is tightly holding the fuse.

      Courtesy of KIA MOTORS AMERICA, INC.

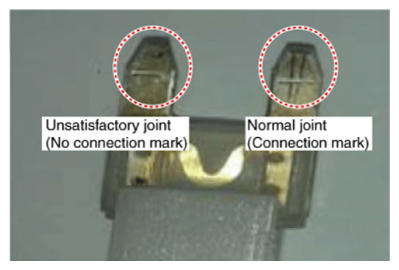

   2. Attach tester fuse to check that it is connected properly.

      Courtesy of KIA MOTORS AMERICA, INC.

   3. Check if fuse is damaged.
6. Check the position switch circuit signal.
   1. Turn Ignition "ON", Engine "OFF".
   2. Measure the PWM output value at each range (P, R, N, D).

      Specified value  : Refer to table below

Courtesy of KIA MOTORS AMERICA, INC.
