Repair Procedures: Removal

  1. Shift the gear to "N".
  2. Remove the air cleaner assembly.

    (Refer to " Removal and Installation  ")

  3. Remove the battery and battery tray.

    (Refer to " Removal  ")

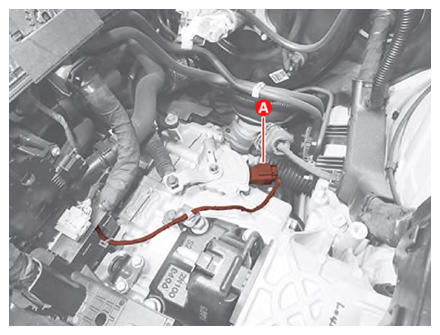

  4. Disconnect the position switch connector (A).
    G13837723Courtesy of KIA MOTORS AMERICA, INC.

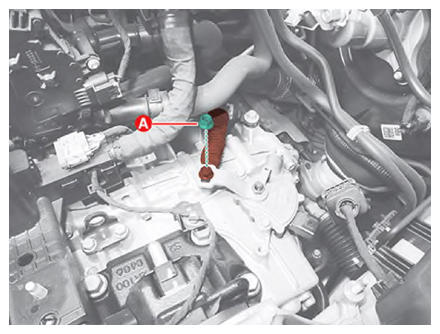

  5. Remove the shift cable after removing the nut (A).
    G13837724Courtesy of KIA MOTORS AMERICA, INC.

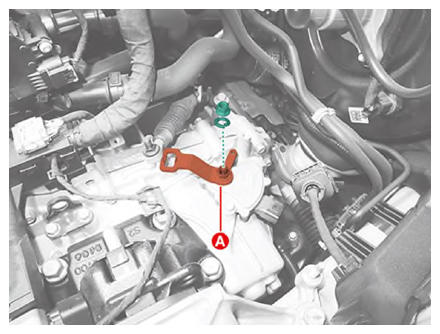

  6. After disconnecting the connector, remove the manual control lever (A) by removing the nut and washer.
    G13837725Courtesy of KIA MOTORS AMERICA, INC.

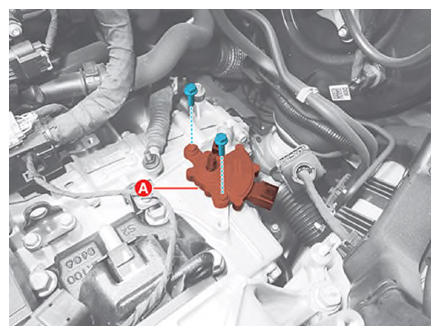

  7. Remove the position switch (A) after removing the bolts.
    G13837726Courtesy of KIA MOTORS AMERICA, INC.
