Repair Procedures: Installation

  1. Install in the reverse order of removal.

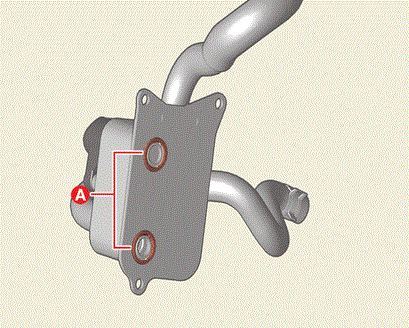

    NOTE: Check the installation condition of the O-ring (A) before installing.
    G00639806Courtesy of KIA MOTORS AMERICA, INC.
  2. Check the cooling and lubricating oil level after refilling the DCT with cooling and lubricating oil.

    (Refer to " Dual Clutch Transmission Control Oil Level Check  ")
