Repair Procedures: Disassembly

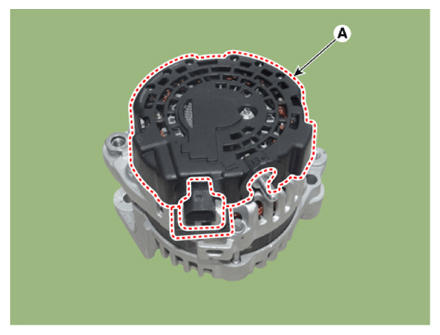

  1. Remove the alternator cover (A).
    G13833700Courtesy of KIA MOTORS AMERICA, INC.

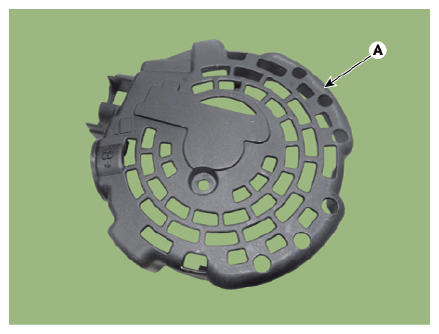

    G13833701Courtesy of KIA MOTORS AMERICA, INC.

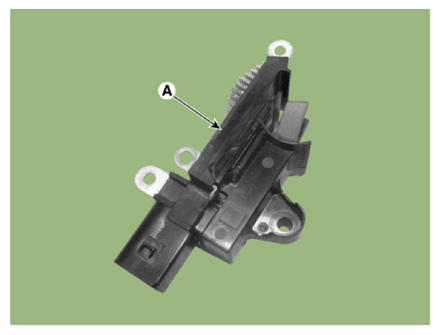

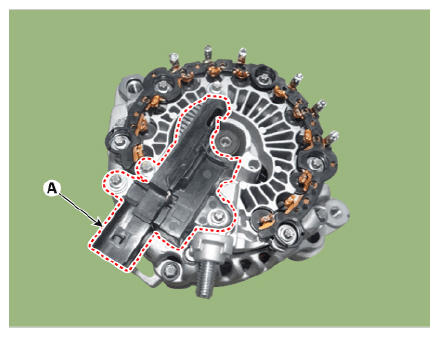

  2. Remove the regulator assembly (A) after removing the mounting bolts.
    NOTE: When removing, be careful not to damage the surrounding parts.
    G13833702Courtesy of KIA MOTORS AMERICA, INC.
    G13833703Courtesy of KIA MOTORS AMERICA, INC.

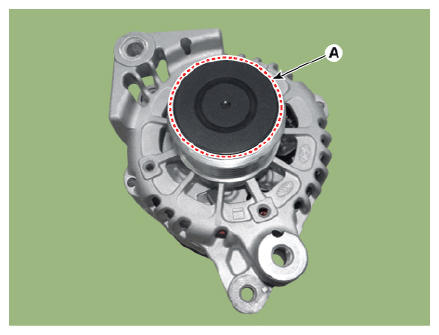

  3. Remove the OAP cap (A).
    G13833704Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: When installing, replace with new OAP cap.

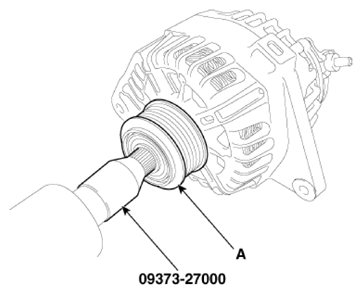

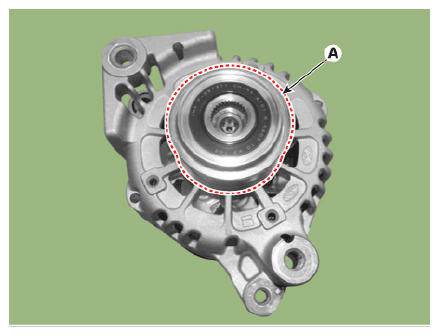

  4. Remove the OAP pulley (A) by using a SST (09373-27000).
    G13833705Courtesy of KIA MOTORS AMERICA, INC.
    G13833706Courtesy of KIA MOTORS AMERICA, INC.

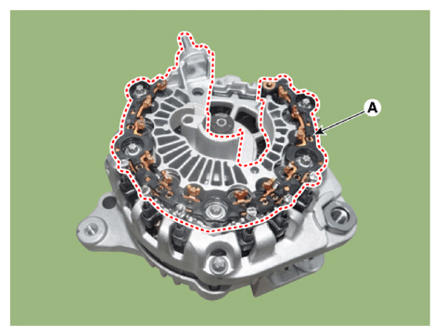

  5. Remove the rectifier (A) after removing the stator lid.
    G13833707Courtesy of KIA MOTORS AMERICA, INC.

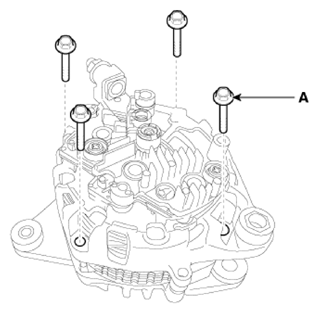

  6. Remove the bolts (A).
    G13833708Courtesy of KIA MOTORS AMERICA, INC.

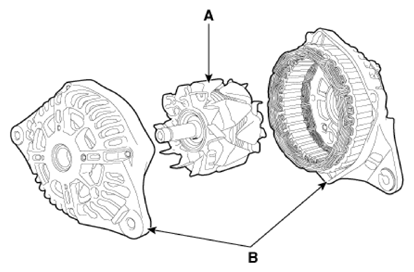

  7. Separate the rotor (A) and housing (B).
    G13833709Courtesy of KIA MOTORS AMERICA, INC.
