Repair Procedures: Removal

Disconnect the negative battery (-) terminal.
Tightening torque:

7.8 - 9.8 N m (0.8 -1.0 kgf m, 5.8 - 7.2 lb ft)

Courtesy of KIA MOTORS AMERICA, INC.

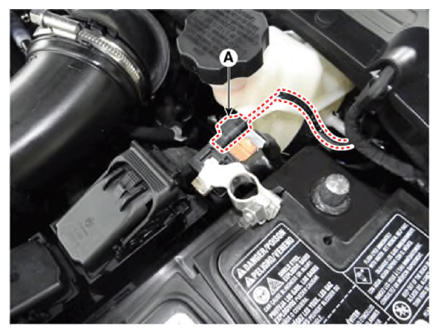

Disconnect the battery sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the battery.
(Refer to " Removal ")

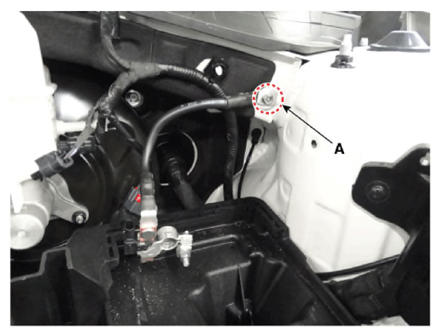

Remove the battery negative (-) cable after removing the mounting bolt (A).

Courtesy of KIA MOTORS AMERICA, INC.
