Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.

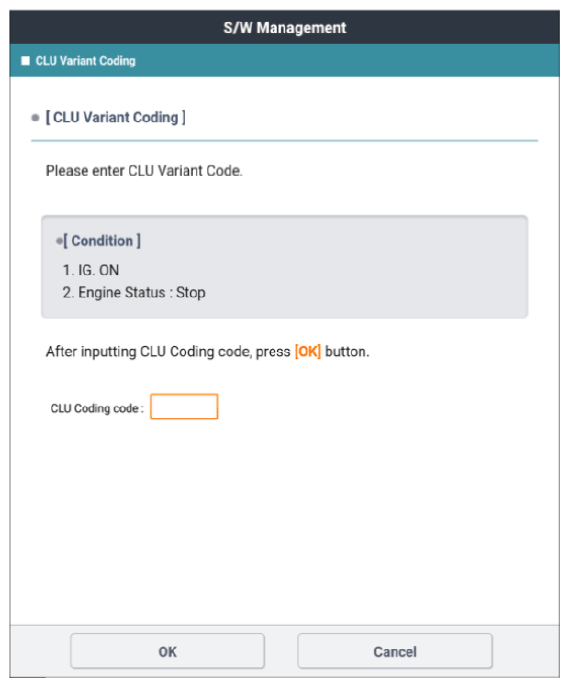

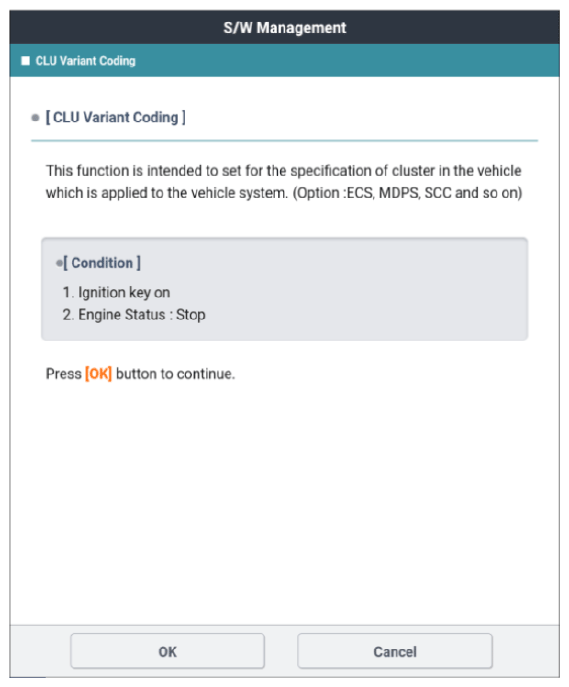

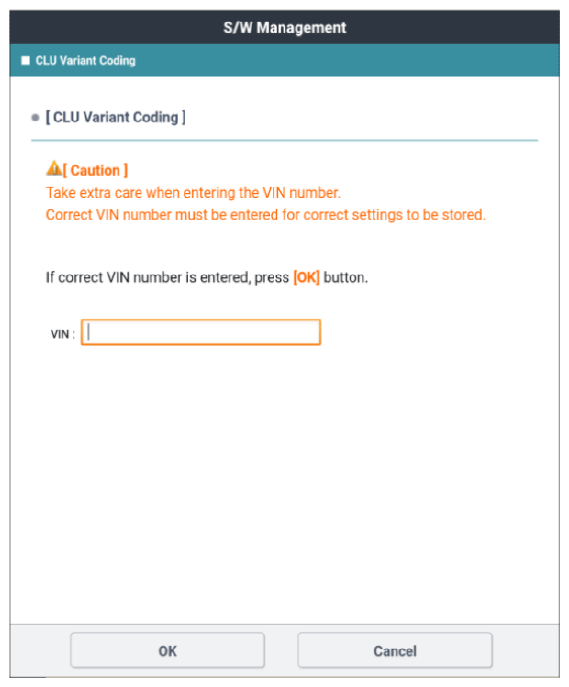

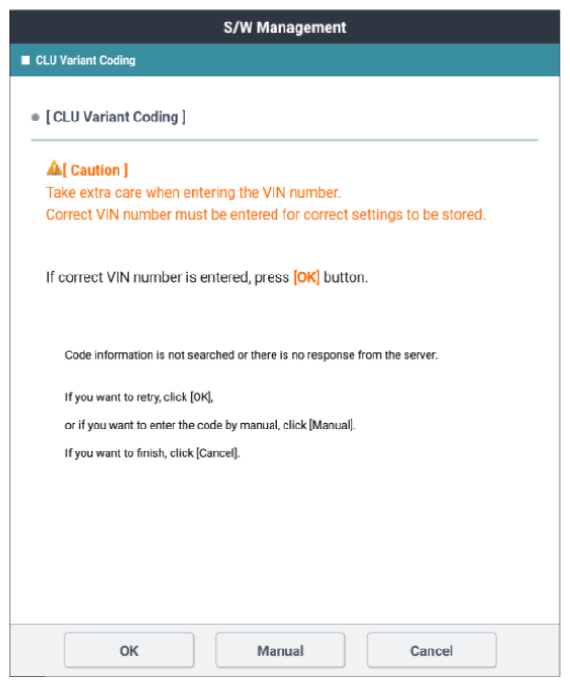

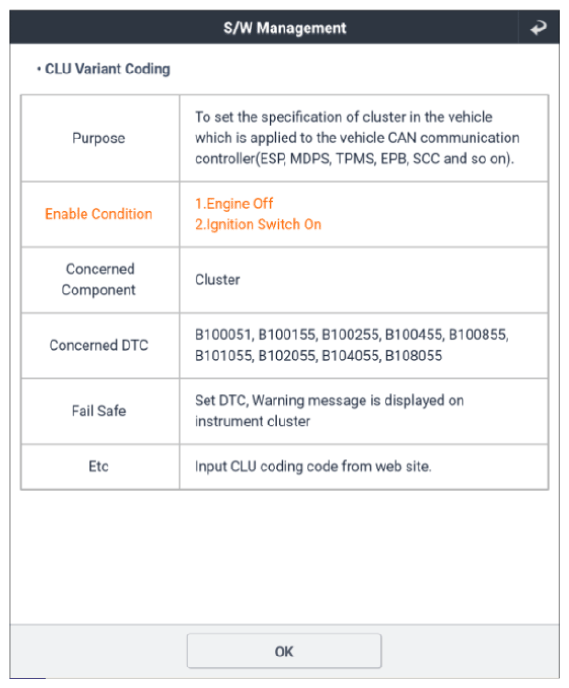

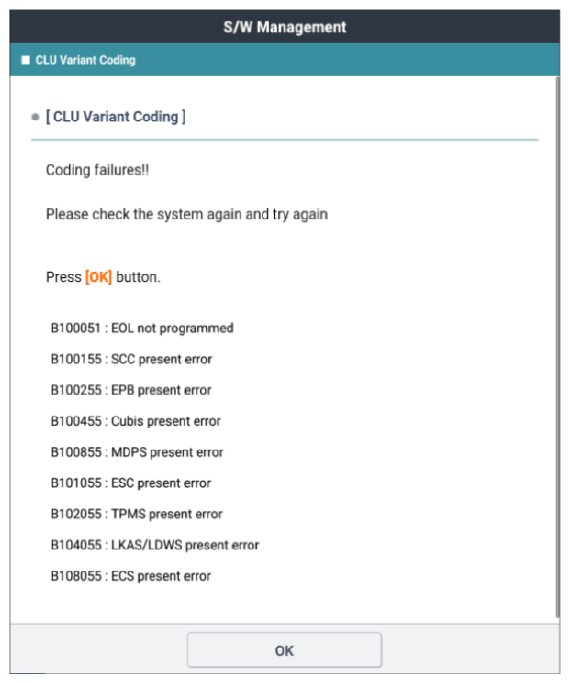

 Fig.1 to 6
G13458461Courtesy of KIA MOTORS AMERICA, INC.
G13458462Courtesy of KIA MOTORS AMERICA, INC.
G13458463Courtesy of KIA MOTORS AMERICA, INC.
G13458464Courtesy of KIA MOTORS AMERICA, INC.
G13458465Courtesy of KIA MOTORS AMERICA, INC.
G13458466Courtesy of KIA MOTORS AMERICA, INC.
