Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 6

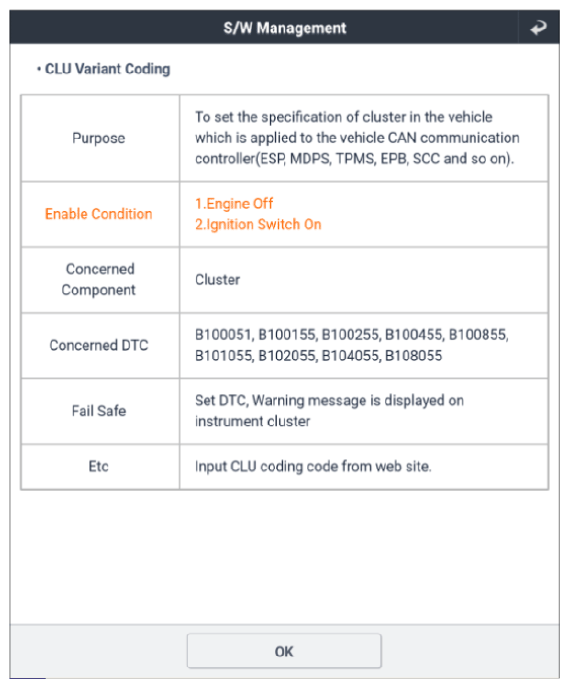

G13458491Courtesy of KIA MOTORS AMERICA, INC.

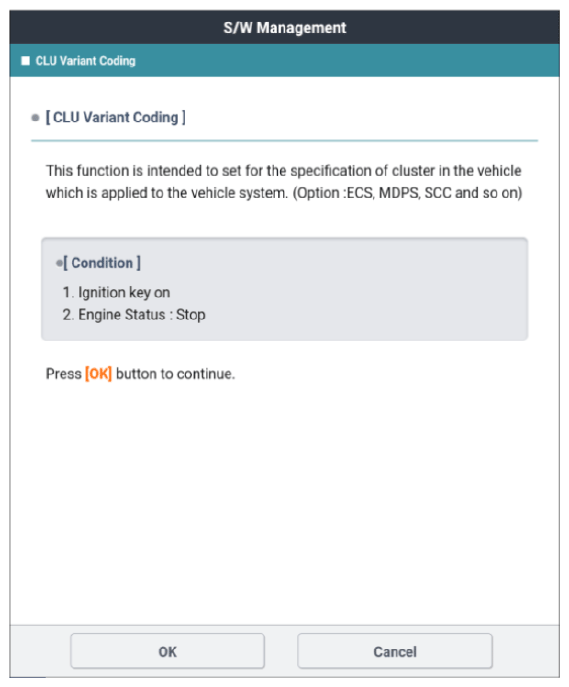

G13458492Courtesy of KIA MOTORS AMERICA, INC.

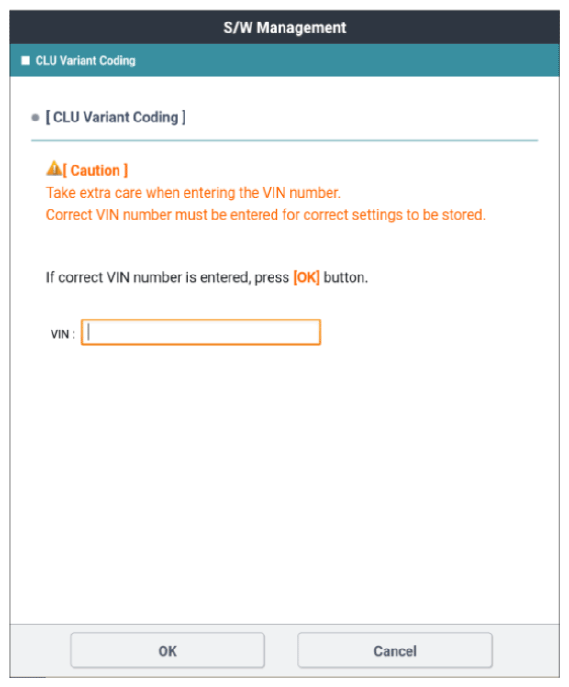

G13458493Courtesy of KIA MOTORS AMERICA, INC.

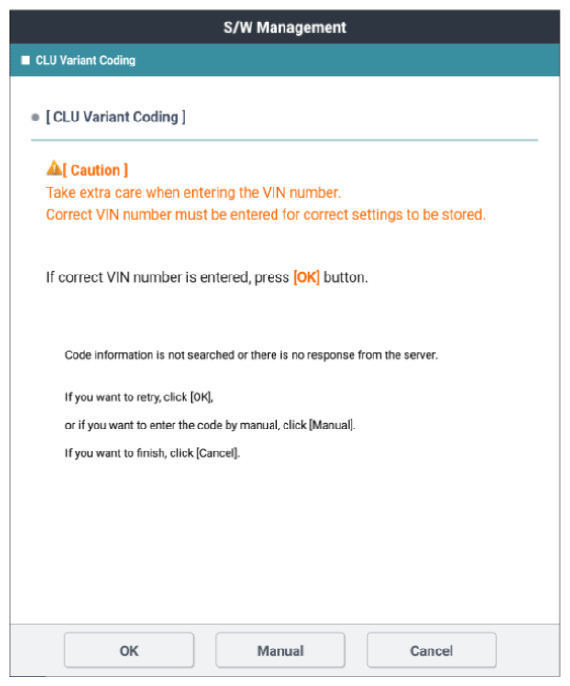

G13458494Courtesy of KIA MOTORS AMERICA, INC.

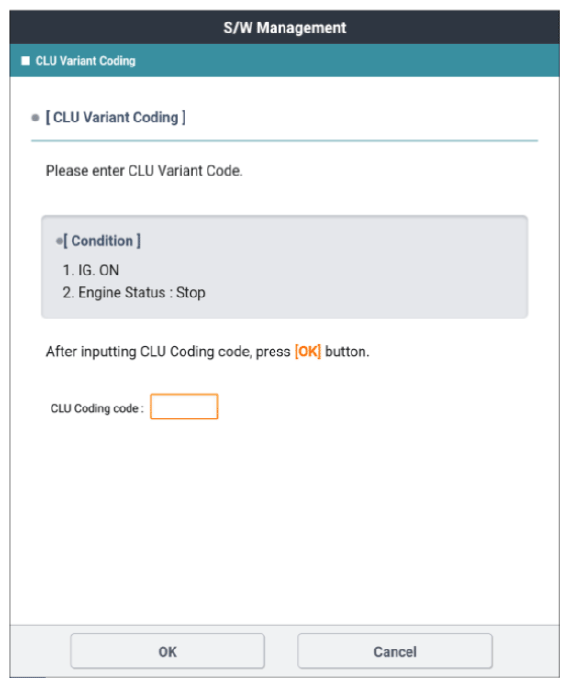

G13458495Courtesy of KIA MOTORS AMERICA, INC.

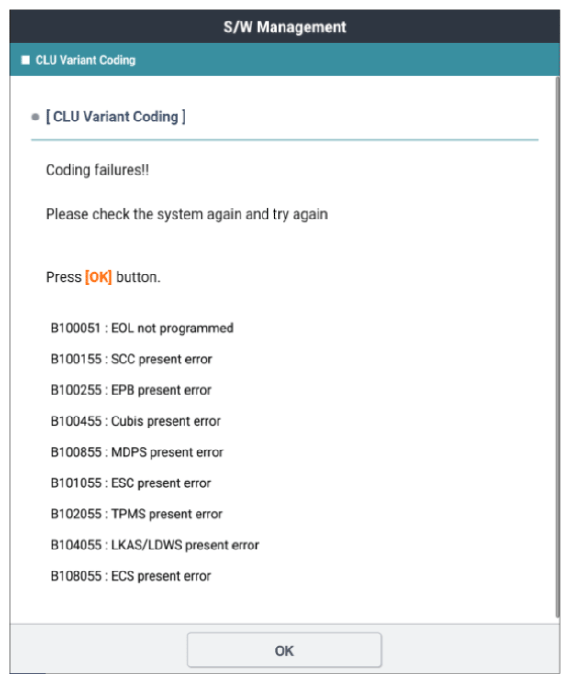

G13458496Courtesy of KIA MOTORS AMERICA, INC.
