Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference
Engine "ON".	Connect KDS to "Data Link Connector (DLC)". Monitor parameters in "Current Data" with KDS.	Fig. 1 to 3

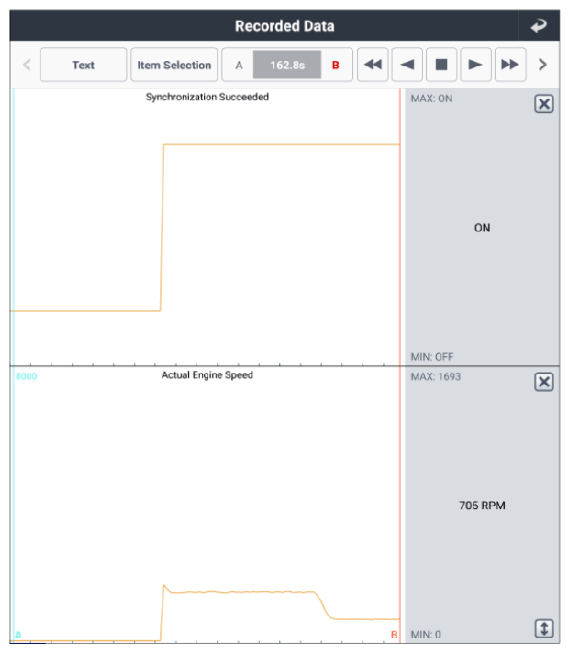

G13355132

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Engine "ON".	CKPS connector	2 (signal)	CMPS - In connector	2 (signal)	Fig. 2
Engine "ON".	CMPS - Ex connector	2 (signal)	VFS - In connector	1 (control)	Fig. 2

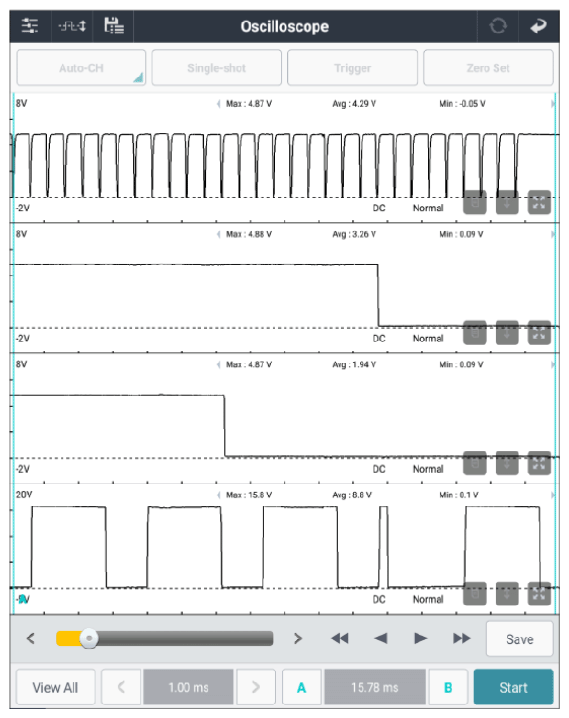

G13355133

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Engine "ON".	CKPS connector	2 (signal)	CMPS - In connector	2 (signal)	Fig. 3
Engine "ON".	CMPS - Ex connector	2 (signal)	OCV - Ex connector	1 (control)	Fig. 3

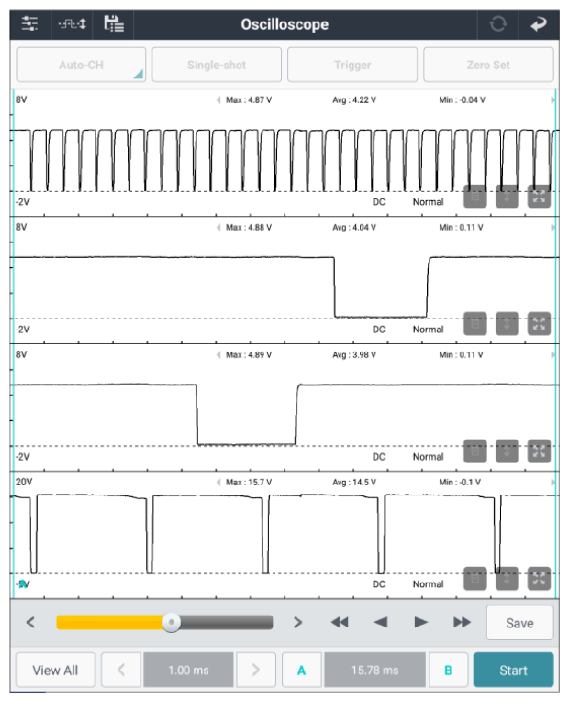

G13355134

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.

No Good

Go to "SYSTEM INSPECTION " procedure.
