Component Inspection
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

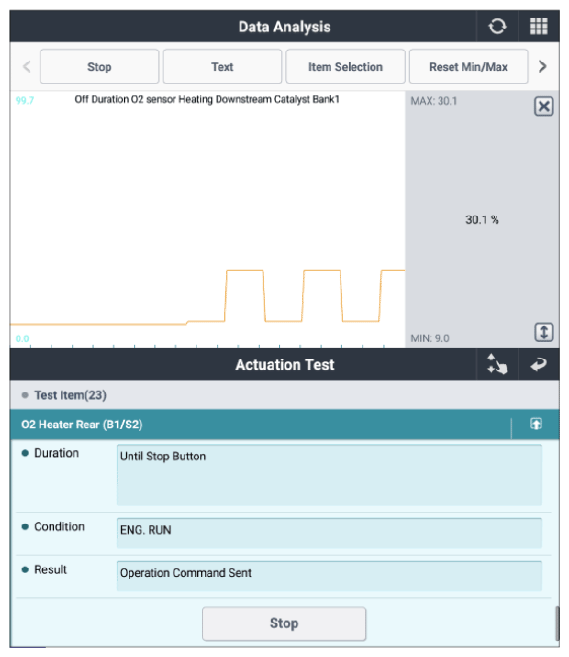

Fig.1 |
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Go to "Inspect HO2S (bank1, sensor2) Heater" procedure.
| Inspect HO2S (bank1, sensor2) Heater | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
HO2S (bank1, sensor2) heater (component side) | 3 (power) | HO2S (bank1, sensor2) heater (component side) | 4 (control) | Approx. 9Ω (20°C (68°F)) |
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the HO2S (bank1, sensor2) and go to "VERIFICATION OF REPAIR " procedure.
