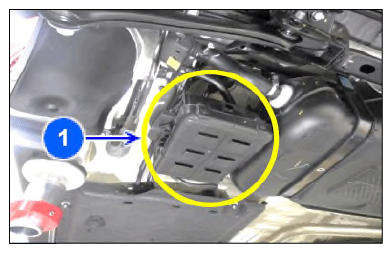

Canister inspection

  1. Cracks or leakage on canister.
  2. Loose connection, distortion, or damage of the vapor hose/tube.
    G13354975Courtesy of KIA MOTORS AMERICA, INC.
