Circuit Inspection

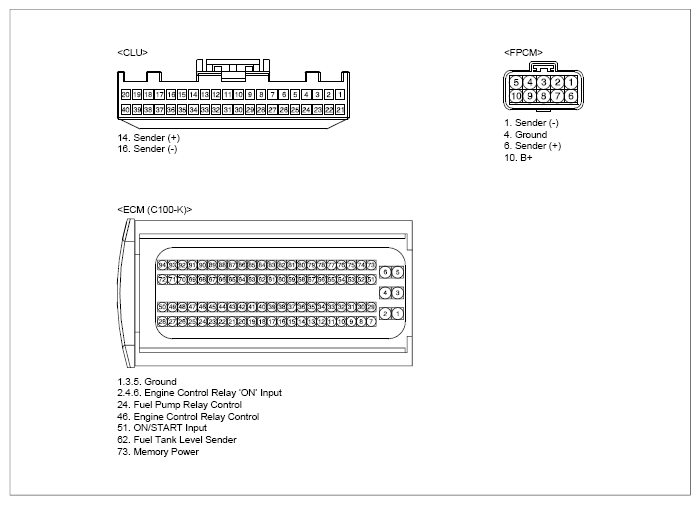

G13355066Courtesy of KIA MOTORS AMERICA, INC.
G13355067Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 FPCM connector 6 (+) Chassis ground - Approx. 0V
FPCM connector 1 (-) Chassis ground - Approx. 0V
  1. Ignition "OFF".
  2. Disconnect the auxiliary battery (-) terminal.
  3. Disconnect the electrical connector(s) from the concerned component.
 FPCM connector 6 (+) ECM connector 62 (fuel tank level sender) Approx. below 1Ω
FPCM connector 6 (+) CLU connector 14 (+) Approx. below 1Ω
FPCM connector 1 (-) CLU connector 16 (-) Approx. below 1Ω
FPCM connector 6 (+) Chassis ground - ∞ (infinity)Ω
FPCM connector 1 (-) Chassis ground - ∞ (infinity)Ω

Good

No Good
