Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 4

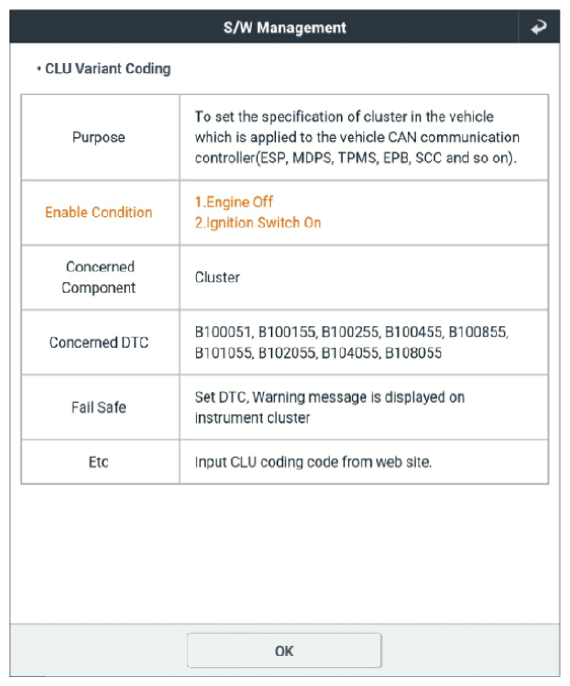

G13354415Courtesy of KIA MOTORS AMERICA, INC.

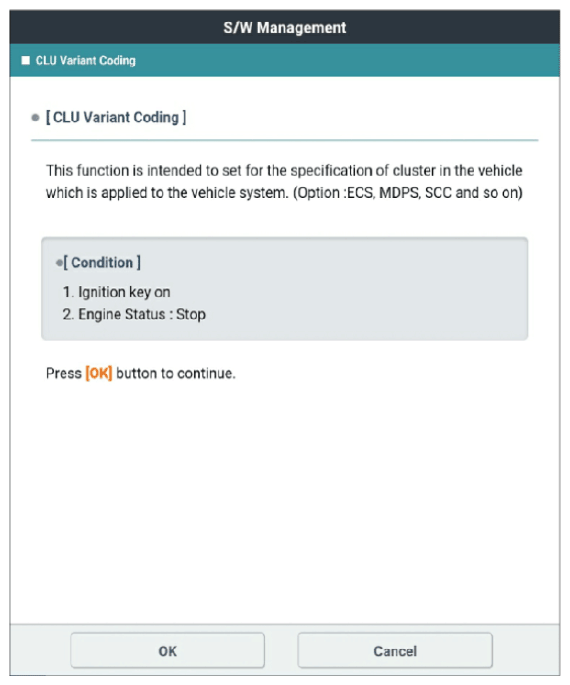

G13354416Courtesy of KIA MOTORS AMERICA, INC.

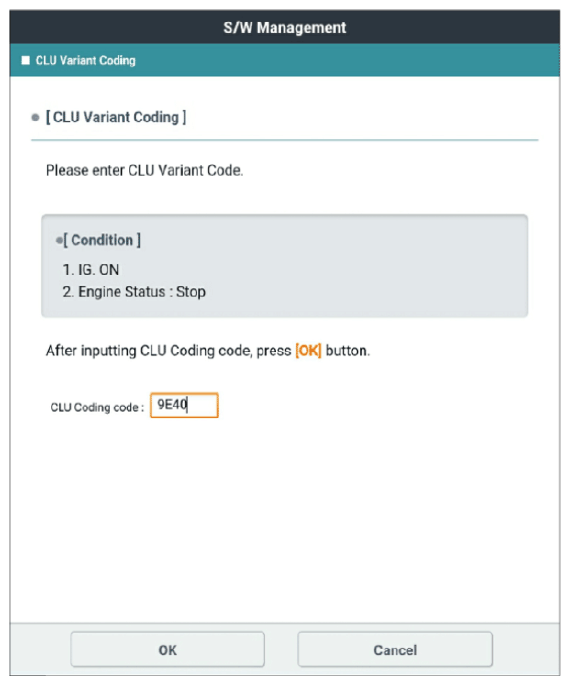

G13354417Courtesy of KIA MOTORS AMERICA, INC.

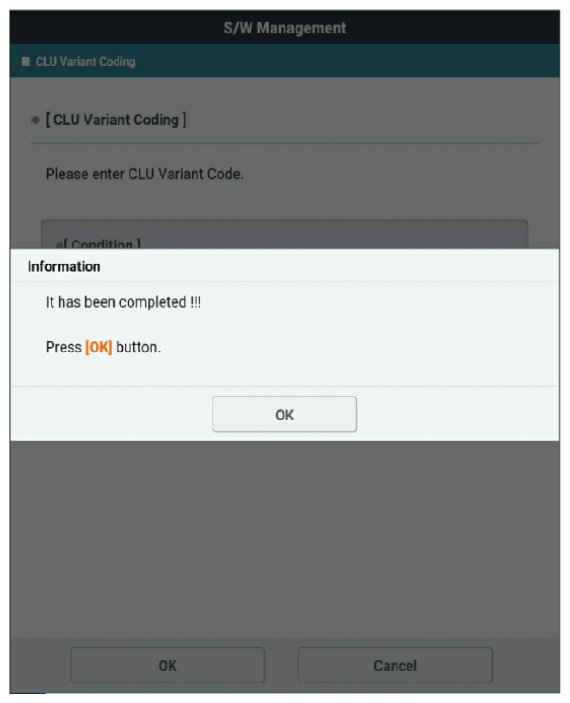

G13354418Courtesy of KIA MOTORS AMERICA, INC.
