Connector and Terminal Function

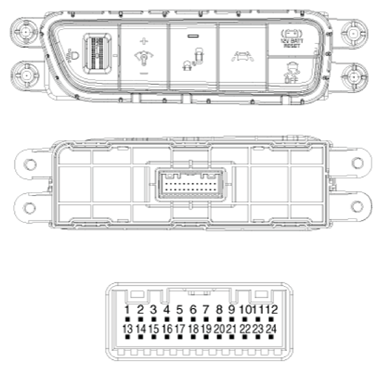

Fig 1: Lane Keeping Assist (LKA) ON-OFF Switch Connector End View
G13351767Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
1 IG1
2 -
3 ESC OFF
4 -
5 LKA signal
6 BCW signal
7 BCW&RCCW indicator
8 HLLD Power
9 -
10 -
11 -
12 HLLD ground
13 Latch relay power
14 -
15 HLLD signal
16 Latch relay ground
17 Rheostat Up
18 Rheostat Down
19 -
20 Illumination (+)
21 -
22 Illumination (-)
23 -
24 Ground
