Vehicle S/W Management

CAUTION: * Perform the "Variant Coding" and "Radar Sensor Alignment (SCC/AEB)" on "Vehicle S/W Management", once SCC (FCA) ECU is replaced.
* Do not select the [C1] in "Radar Sensor Alignment (SCC/AEB)", unless you have proper equipment to perform inline procedure.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
  • Fig.1 to 4
  • Fig.5 to 12
G13359178Courtesy of KIA MOTORS AMERICA, INC.

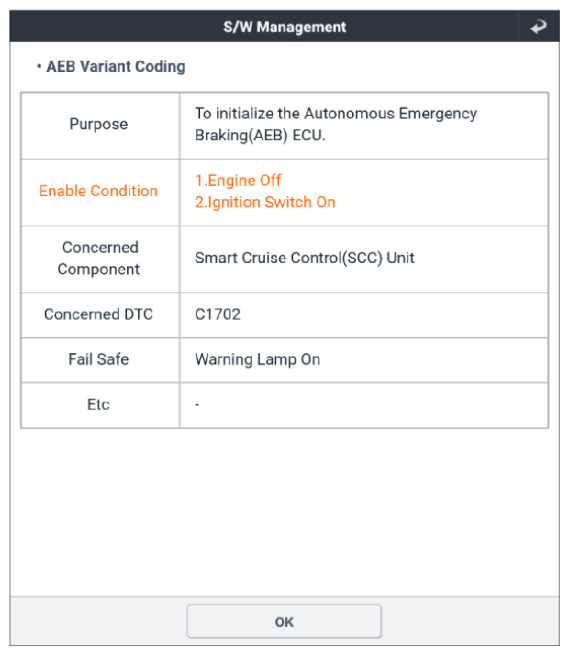

G13359179Courtesy of KIA MOTORS AMERICA, INC.

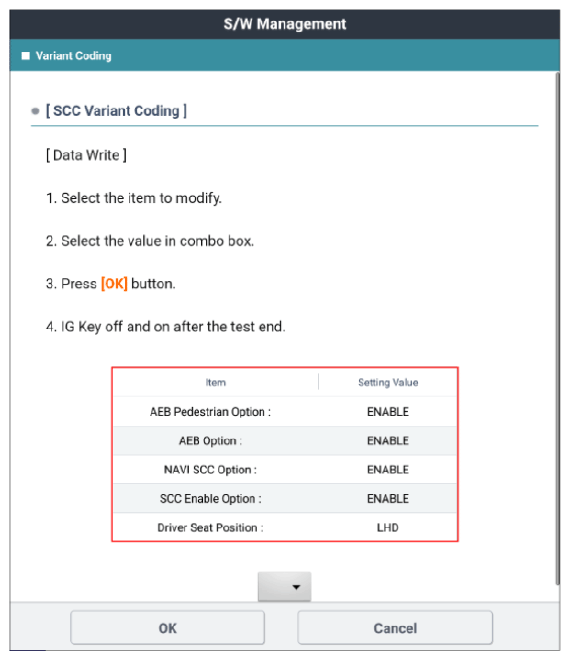

G13359180Courtesy of KIA MOTORS AMERICA, INC.

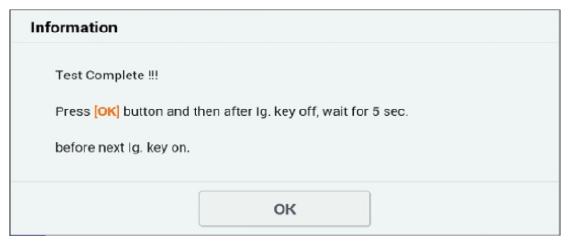

G13359181Courtesy of KIA MOTORS AMERICA, INC.
G13359182Courtesy of KIA MOTORS AMERICA, INC.

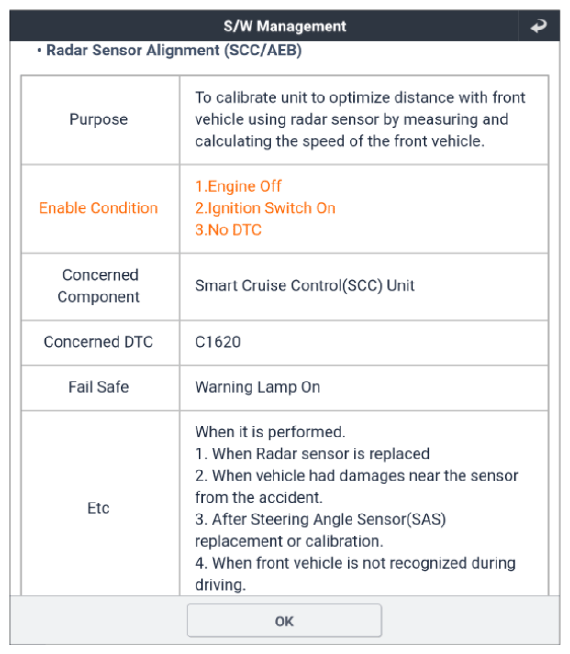

G13359183Courtesy of KIA MOTORS AMERICA, INC.

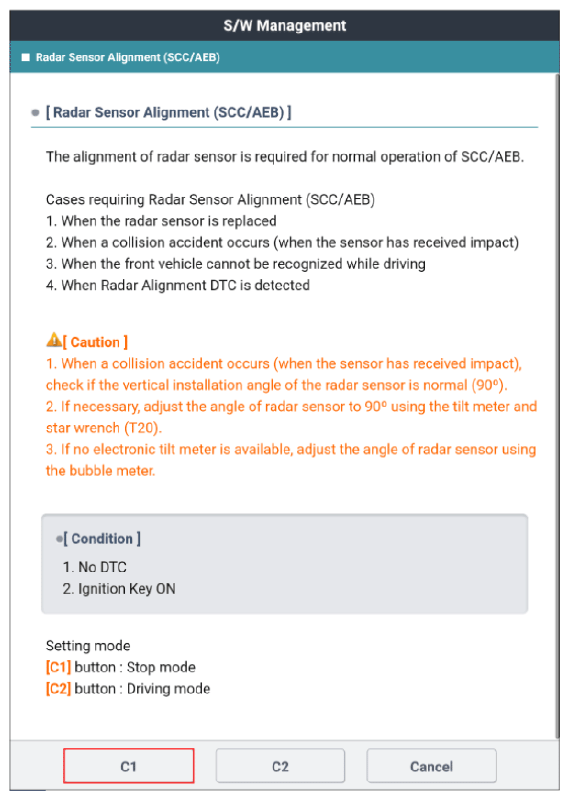

G13359184Courtesy of KIA MOTORS AMERICA, INC.

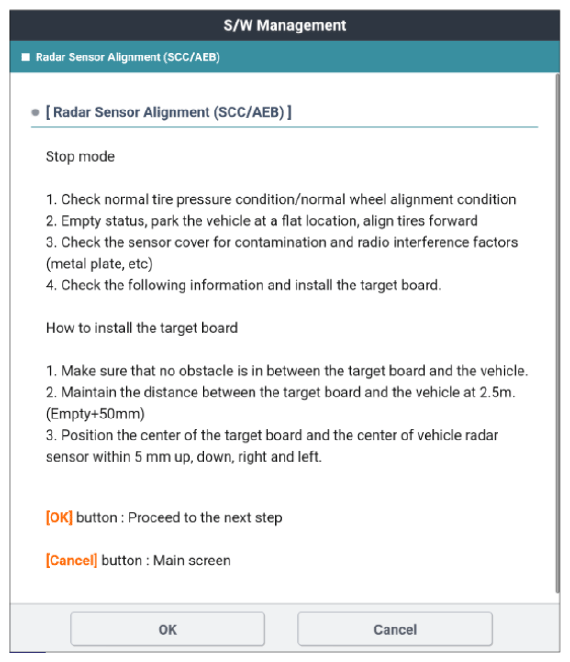

G13359185Courtesy of KIA MOTORS AMERICA, INC.

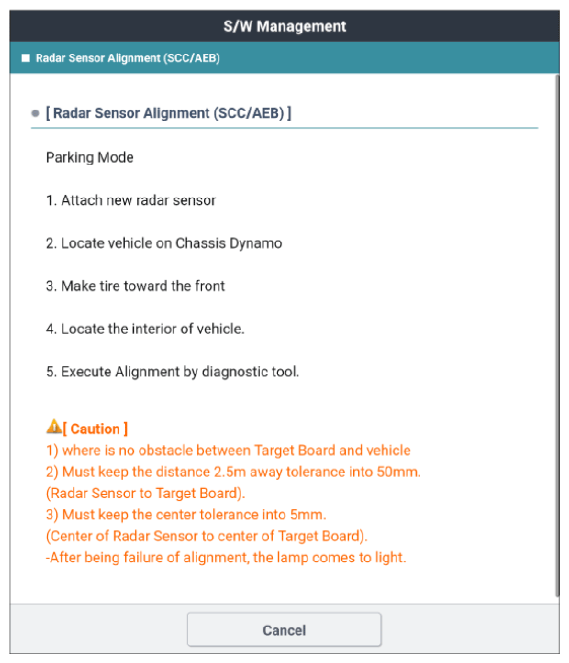

G13359186Courtesy of KIA MOTORS AMERICA, INC.

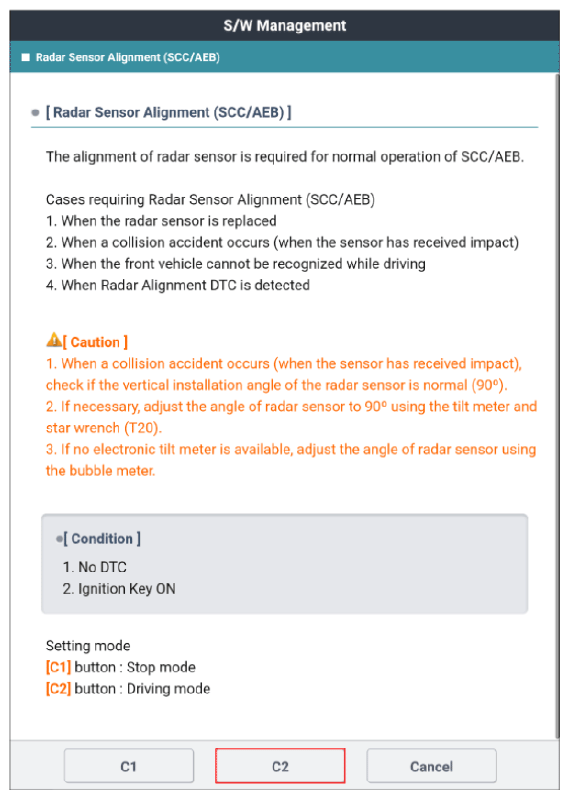

G13359187Courtesy of KIA MOTORS AMERICA, INC.

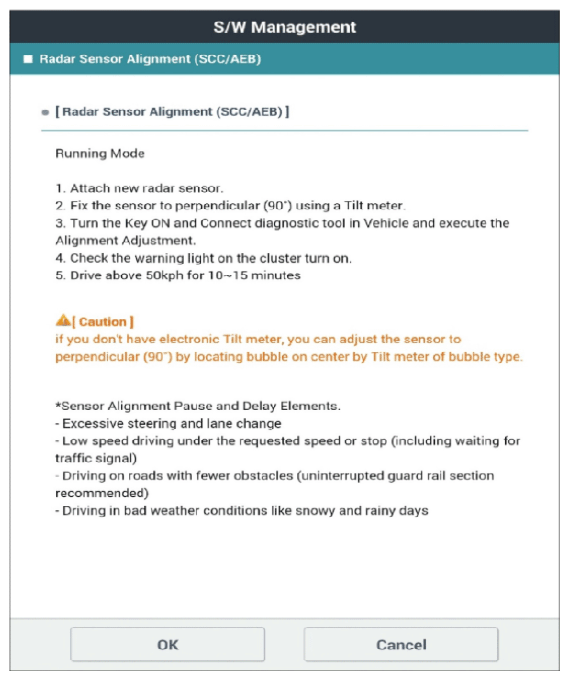

G13359188Courtesy of KIA MOTORS AMERICA, INC.

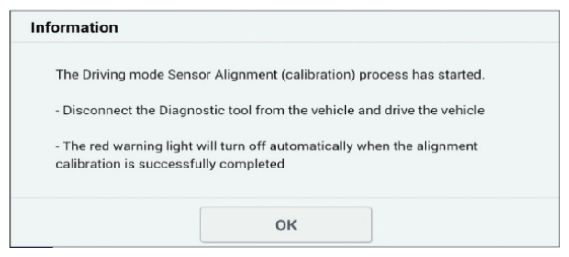

G13359189Courtesy of KIA MOTORS AMERICA, INC.
