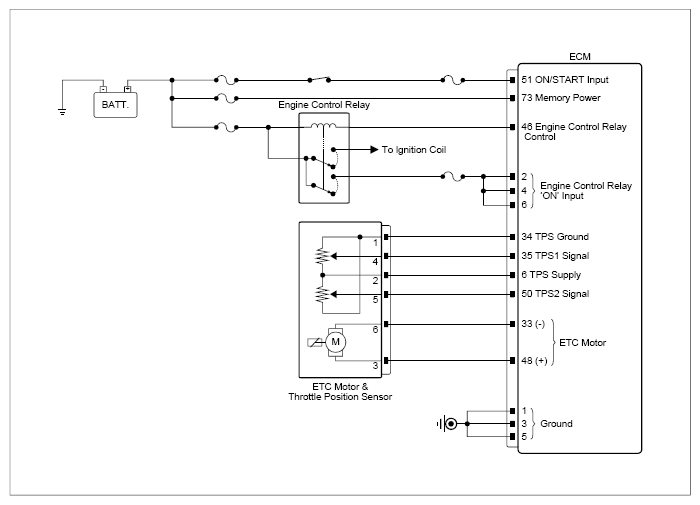

Circuit Inspection

G13354837

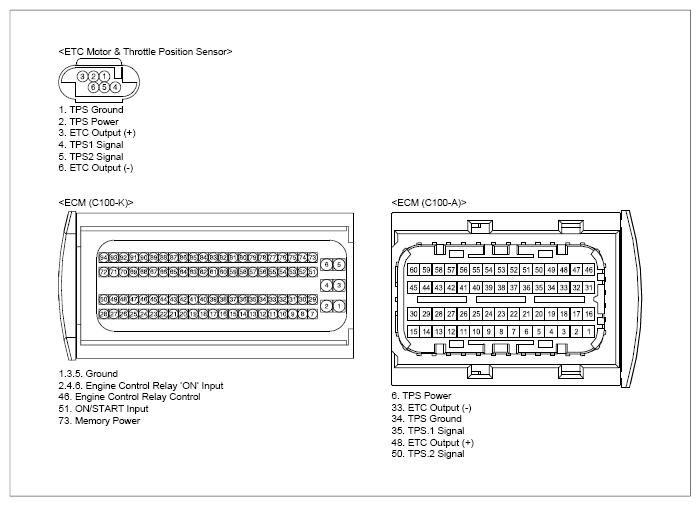

Courtesy of KIA MOTORS AMERICA, INC.

G13354838

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	ETC motor & TPS connector	3 (ETC +)	Chassis ground	-	Approx. 1.8V
	ETC motor & TPS connector	6 (ETC -)	Chassis ground	-	Approx. 0V
	ETC motor & TPS connector	2 (TPS supply)	Chassis ground	-	Approx. 5V
	ETC motor & TPS connector	5 (TPS2)	Chassis ground	-	Approx. 0V
	ETC motor & TPS connector	1 (ground)	Chassis ground	-	Approx. 0V
	ETC motor & TPS connector	4 (TPS1)	Chassis ground	-	Approx. 4.8V
Ignition "OFF". Disconnect the auxiliary battery (-) terminal. Disconnect the electrical connector(s) from the concerned component.	ETC motor & TPS connector	4 (TPS1)	Chassis ground	-	∞ (infinity)Ω
	ETC motor & TPS connector	5 (TPS2)	Chassis ground	-	∞ (infinity)Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
